F3L600R10W4S7F_C22 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 950V, 600A

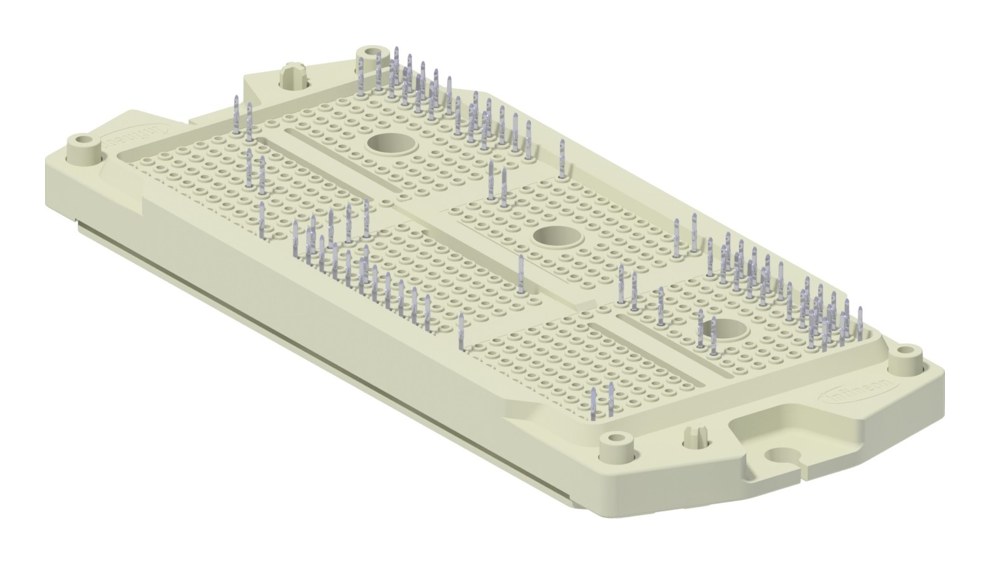

F3L600R10W4S7F_C22 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

F3L600R10W4S7F_C22 Description

F3L600R10W4S7F_C22 is a 950 V, 600 A Infineon EasyPACK IGBT module (3-level), used for solar inverters and three-level applications.

USComponent supplies F3L600R10W4S7F_C22 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 950 V / 600 A three-level IGBT module
  • TRENCHSTOP IGBT7 with CoolSiC Schottky diodes (gen 5)
  • EasyPACK housing, PressFIT contact technology
  • Integrated NTC temperature sensor

Target Applications

Infineon F3L600R10W4S7F_C22 is used for Solar inverters and three-level applications.

Key Specifications

F3L600R10W4S7F_C22 is a 950 V, 600 A Infineon IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
Configuration3-level (ANPC/NPC) module
Collector-emitter voltage (VCES)950 V
Collector current (IC nom)600 A
TechnologyTRENCHSTOP IGBT7 with CoolSiC Schottky diode gen 5
PackageEasyPACK, PressFIT

Technical document (PDF)  |  Request a quote for F3L600R10W4S7F_C22 (reply within 24 hours)
