F3L75R12W1H3_B27 Infineon - IGBT Module

Also written as: F3L75R12W1H3-B27

Category: IGBT Modules

Specifications: 1200V, 75A

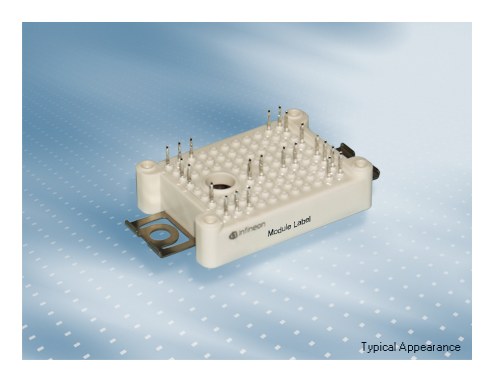

F3L75R12W1H3_B27 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L75R12W1H3_B27 Description

F3L75R12W1H3_B27 is a 1200 V / 75 A 3-level IGBT module from Infineon Technologies. Typical applications: solar applications.

USComponent supplies F3L75R12W1H3_B27 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High speed IGBT H3
  • Low inductive design
  • Low switching losses
  • Low Veesat
  • 3 kV AC 1min insulation
  • Al2O33 substrate with low thermal resistance
  • Compact design

Target Applications

Infineon F3L75R12W1H3_B27 is used for Solar applications.

Key Specifications

F3L75R12W1H3_B27 is a 1200 V / 75 A 3-level IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)75 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L75R12W1H3_B27 (reply within 24 hours)
