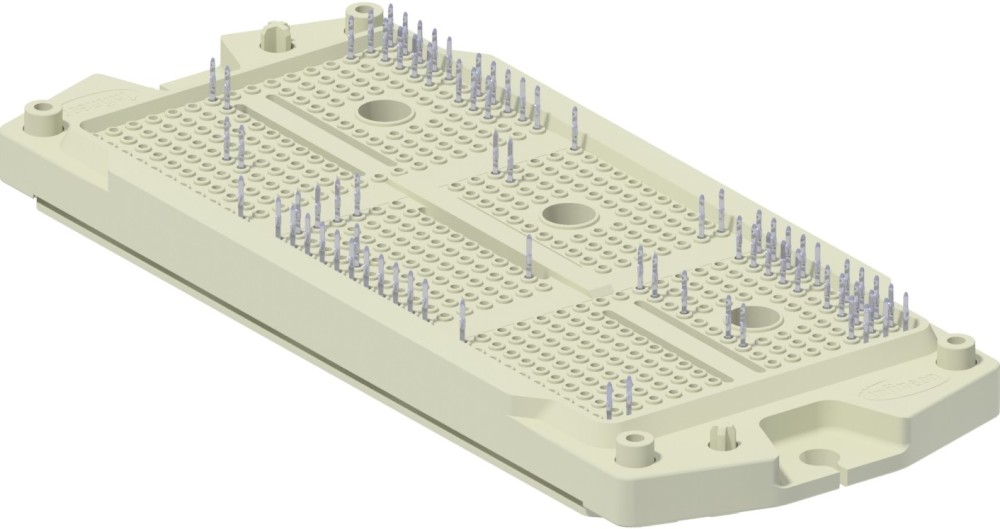

F3L420R12W4H7_H11 Infineon - IGBT Module

F3L420R12W4H7_H11 Description

F3L420R12W4H7_H11 is an Infineon 1,200 V / 250 A 3-level ANPC (active Advanced Neutral Point Clamp) IGBT module, EasyPACK 4B.

USComponent supplies F3L420R12W4H7_H11 and other Infineon power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon F3L420R12W4H7_H11 is used for Three-level applications, solar inverters.

Key Specifications

F3L420R12W4H7_H11 is an Infineon 1,200 V / 250 A 3-level ANPC (active Advanced Neutral Point Clamp) IGBT module, EasyPACK 4B. Key data from the Infineon datasheet.

Parameter	Value
Product type	IGBT module
Configuration	3-level ANPC (active Advanced Neutral Point Clamp) IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	250 A
Repetitive peak collector current (ICRM)	500 A
Technology	Ultra-fast IGBT chips, low switching losses, Tvj op up to 175 °C
Package	EasyPACK 4B (AG-EASY4B)
Feature	PressFIT contact technology, integrated mounting clamps
Feature	Integrated NTC temperature sensor
Feature	3.2 kV AC 1 min insulation

Status: end of life announced by Infineon (Product Discontinuation PD_26_139_01, issued 2026-08-19: last order date 2027-02-28, last delivery date 2027-08-31). Infineon lists no direct replacement for this part. USComponent can still source the original F3L420R12W4H7_H11.

Technical document (PDF)  |  Request a quote for F3L420R12W4H7_H11 (reply within 24 hours)
