F3L500R12W3H7_H11 Infineon - IGBT Module

Also written as: F3L500R12W3H7-H11

Category: IGBT Modules

Specifications: 1200V, 500A

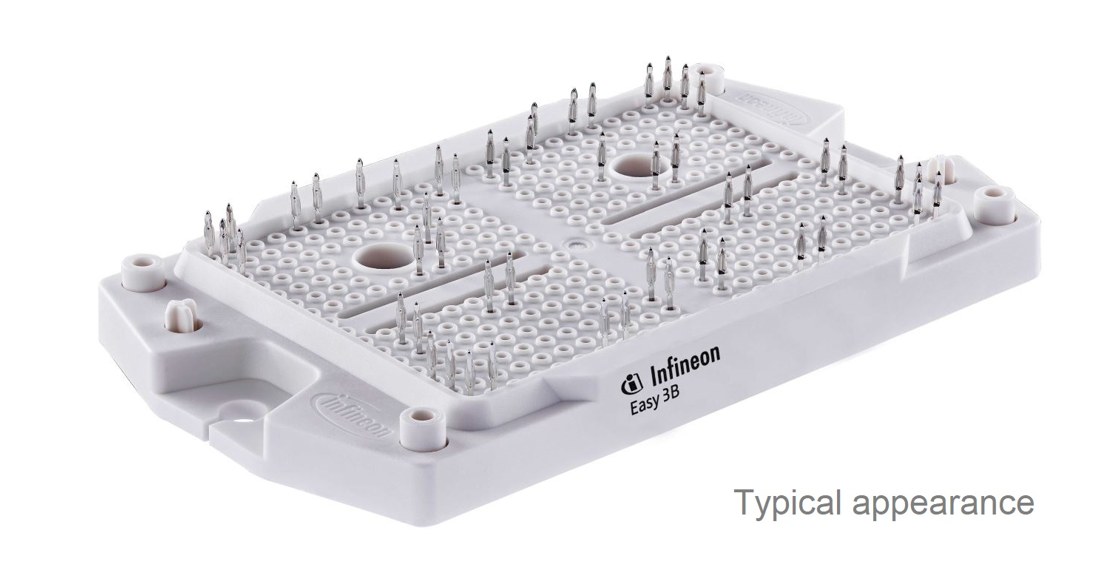

F3L500R12W3H7_H11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L500R12W3H7_H11 Description

F3L500R12W3H7_H11 is a 1200 V / 500 A 3-level IGBT module from Infineon Technologies. Typical applications: three-level applications, Solar applications.

USComponent supplies F3L500R12W3H7_H11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra fast IGBT chips
  • Low inductive design
  • Low switching losses
  • 3.2 kV AC 1 minute insulation

Target Applications

Infineon F3L500R12W3H7_H11 is used for Three-level applications, Solar applications.

Key Specifications

F3L500R12W3H7_H11 is a 1200 V / 500 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)500 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L500R12W3H7_H11 (reply within 24 hours)

Related Part Numbers

F3L340R12W3H7_H11
1200V, 340A		F3L500R12W3H7_H20
1200V, 500A		F3L420R12W4H7_H11
1200V, 250A		F3L420R12W3H7_H21
1200V, 240A
F3L500R12N3H7_B66
1200V, 510A		F3L500R12N3H7F_B66
1200V, 510A		F3L50R06W1E3_B11
600V, 50A		F3L600R10N3S7F
950V, 600A
F3L600R10W4S7F_C22
950V, 600A		F3L600R10W4S7F_H11
950V, 600A		F3L420R12D3H7_B78
1200V, 420A		F3L6MR20W2M1H_B70
2000V, 100A
F3L420R12D3H7F
1200V, 420A		F3L75R07W2E3_B11
650V, 75A		F3L400R12PT4_B26
1200V, 400A		F3L75R12W1H3_B11
1200V, 75A
