F3L75R12W1H3_B11 Infineon - IGBT Module

Also written as: F3L75R12W1H3-B11

Category: IGBT Modules

Specifications: 1200V, 75A

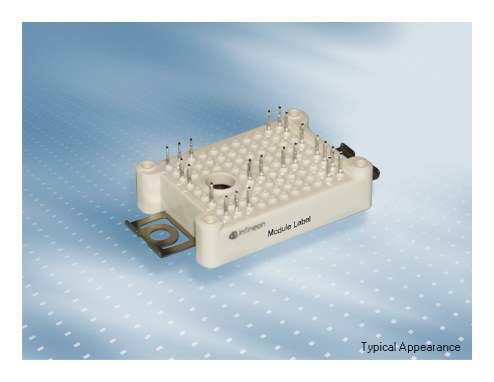

F3L75R12W1H3_B11 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

F3L75R12W1H3_B11 Description

F3L75R12W1H3_B11 is a 1200 V / 75 A 3-level IGBT module from Infineon Technologies. Typical applications: solar Applications.

USComponent supplies F3L75R12W1H3_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low Inductive Design
  • Low Switching Losses
  • Low Vcesat
  • Al2O3 Substrate with Low Thermal Resistance
  • Compact design
  • PressFIT Contact Technology
  • Rugged mounting due to integrated mounting

Target Applications

Infineon F3L75R12W1H3_B11 is used for Solar Applications.

Key Specifications

F3L75R12W1H3_B11 is a 1200 V / 75 A 3-level IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)75 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L75R12W1H3_B11 (reply within 24 hours)
