F3L500R12N3H7_B66 Infineon - IGBT Module

Also written as: F3L500R12N3H7-B66

Category: IGBT Modules

Specifications: 1200V, 510A

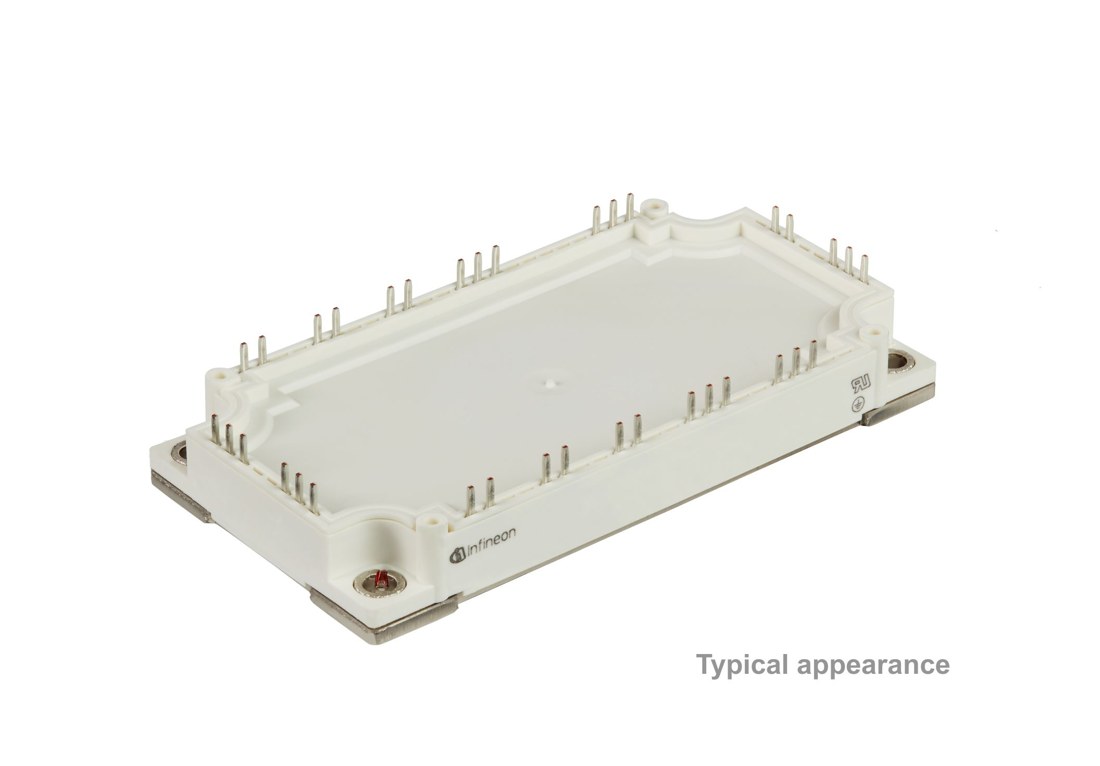

F3L500R12N3H7_B66 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

F3L500R12N3H7_B66 Description

F3L500R12N3H7_B66 is a 1200 V / 510 A 3-level IGBT module from Infineon Technologies.

USComponent supplies F3L500R12N3H7_B66 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon F3L500R12N3H7_B66 finds applications in various industries and systems where high power switching is required.

Key Specifications

F3L500R12N3H7_B66 is a 1200 V / 510 A 3-level IGBT module from Infineon Technologies (EconoPACK 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)510 A
PackageEconoPACK 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L500R12N3H7_B66 (reply within 24 hours)
