F3L420R12W3H7_H21 Infineon - IGBT Module

Also written as: F3L420R12W3H7-H21

Category: IGBT Modules

Specifications: 1200V, 240A

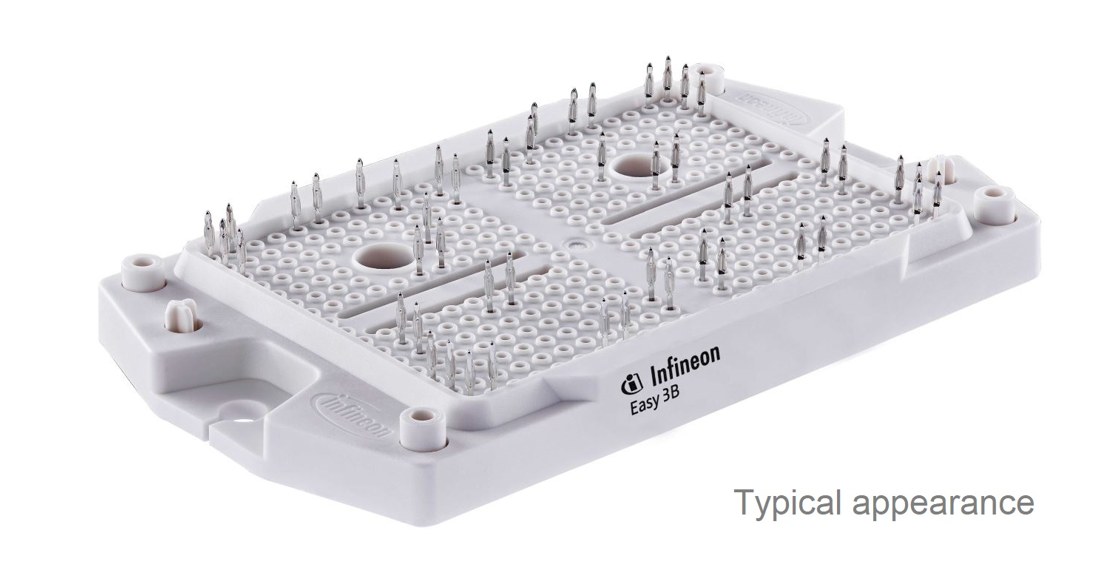

F3L420R12W3H7_H21 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L420R12W3H7_H21 Description

F3L420R12W3H7_H21 is a 1200 V / 240 A 3-level IGBT module from Infineon Technologies. Typical applications: three-level applications, Solar applications.

USComponent supplies F3L420R12W3H7_H21 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra fast IGBT chips
  • Low inductive design
  • Low switching losses
  • Al2O3 substrate with low thermal resistance

Target Applications

Infineon F3L420R12W3H7_H21 is used for Three-level applications, Solar applications.

Key Specifications

F3L420R12W3H7_H21 is a 1200 V / 240 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)240 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L420R12W3H7_H21 (reply within 24 hours)
