F3L200R12N2H3_B47 Infineon - IGBT Module

Also written as: F3L200R12N2H3-B47

Category: IGBT Modules

Specifications: 1200V, 150A

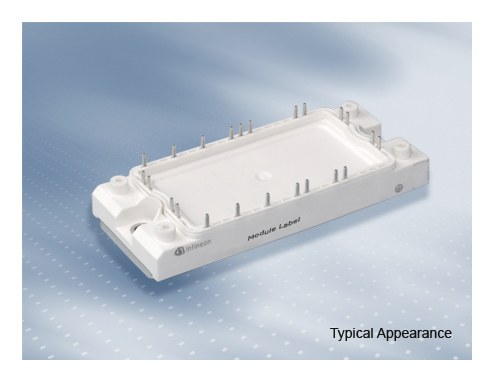

F3L200R12N2H3_B47 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L200R12N2H3_B47 Description

F3L200R12N2H3_B47 is a 1200 V / 150 A 3-level IGBT module from Infineon Technologies.

USComponent supplies F3L200R12N2H3_B47 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • High speed IGBT H3
  • 2.5 kV AC 1min insulation
  • RoHS compliant
  • Solder contact technology

Target Applications

Infineon F3L200R12N2H3_B47 finds applications in various industries and systems where high power switching is required.

Key Specifications

F3L200R12N2H3_B47 is a 1200 V / 150 A 3-level IGBT module from Infineon Technologies (EconoPACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)150 A
PackageEconoPACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L200R12N2H3_B47 (reply within 24 hours)
