F3L420R12D3H7_B78 Infineon - IGBT Module

Also written as: F3L420R12D3H7-B78

Category: IGBT Modules

Specifications: 1200V, 420A

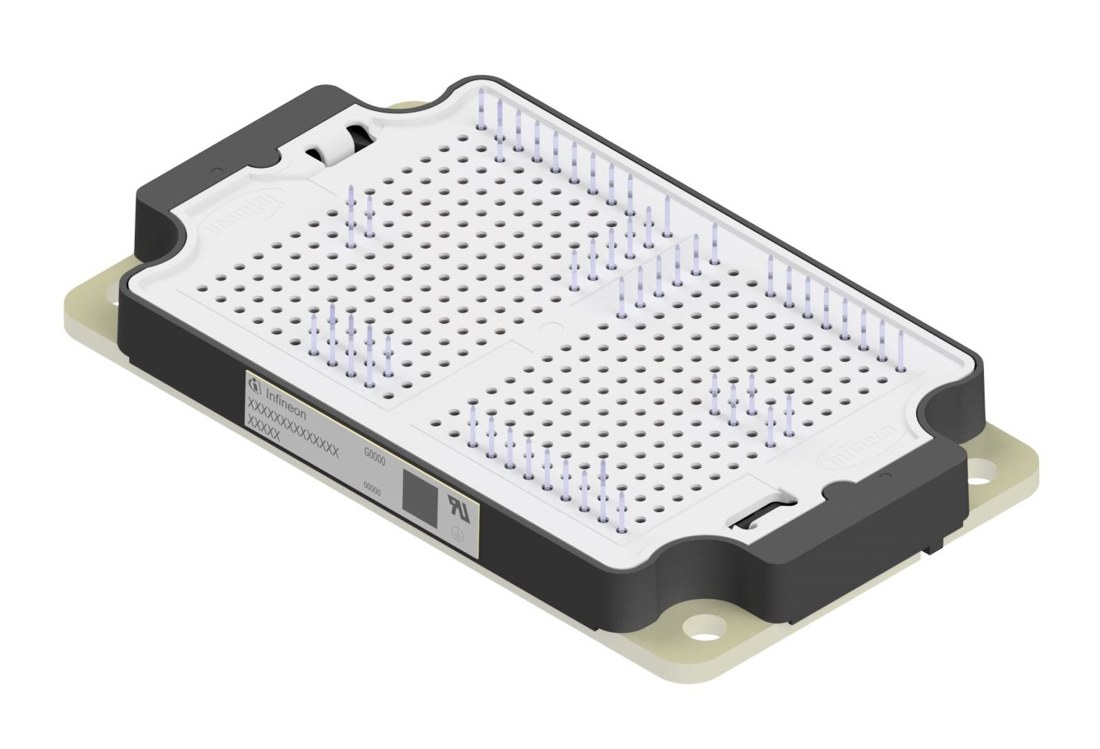

F3L420R12D3H7_B78 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

F3L420R12D3H7_B78 Description

F3L420R12D3H7_B78 is a 1200 V / 420 A 3-level IGBT module from Infineon Technologies. Typical applications: three-level applications, Solar applications.

USComponent supplies F3L420R12D3H7_B78 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra fast IGBT chips
  • Low inductive design
  • Low switching losses
  • High current pin

Target Applications

Infineon F3L420R12D3H7_B78 is used for Three-level applications, Solar applications.

Key Specifications

F3L420R12D3H7_B78 is a 1200 V / 420 A 3-level IGBT module from Infineon Technologies (EasyPACK HD3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)420 A
PackageEasyPACK HD3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L420R12D3H7_B78 (reply within 24 hours)
