F3L400R12PT4P_B26 Infineon - IGBT Module

Also written as: F3L400R12PT4P-B26

Category: IGBT Modules

Specifications: 1200V, 400A

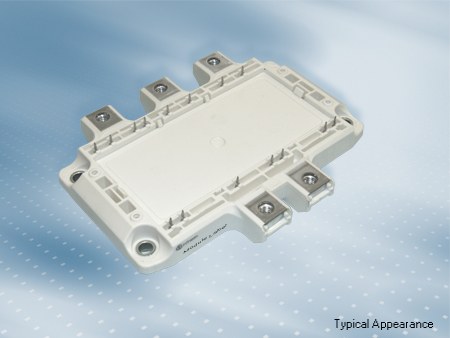

F3L400R12PT4P_B26 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L400R12PT4P_B26 Description

F3L400R12PT4P_B26 is a 1200 V / 400 A 3-level IGBT module from Infineon Technologies. Typical applications: solar applications, UPS systems.

USComponent supplies F3L400R12PT4P_B26 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • Low switching losses
  • Low Vcesat
  • Trench IGBT 4
  • Vcesat with positive temperature coefficient
  • Isolated base plate
  • Compact design
  • PressFIT contact technology

Target Applications

Infineon F3L400R12PT4P_B26 is used for Solar applications, UPS systems.

Key Specifications

F3L400R12PT4P_B26 is a 1200 V / 400 A 3-level IGBT module from Infineon Technologies (EconoPACK 4 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)400 A
PackageEconoPACK 4
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L400R12PT4P_B26 (reply within 24 hours)
