TM130RZ-2HMitsubishi - Thyristor Module

TM130RZ-2H Description

Mitsubishi Electric TM130RZ-2H is a thyristor module rated at 1600 V and 130 A. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM130RZ-2H.

Summary of Features

Target Applications

Mitsubishi TM130RZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130RZ-2H is a 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	130 A
Datasheet	Available on this page (PDF)

Download TM130RZ-2H Datasheet

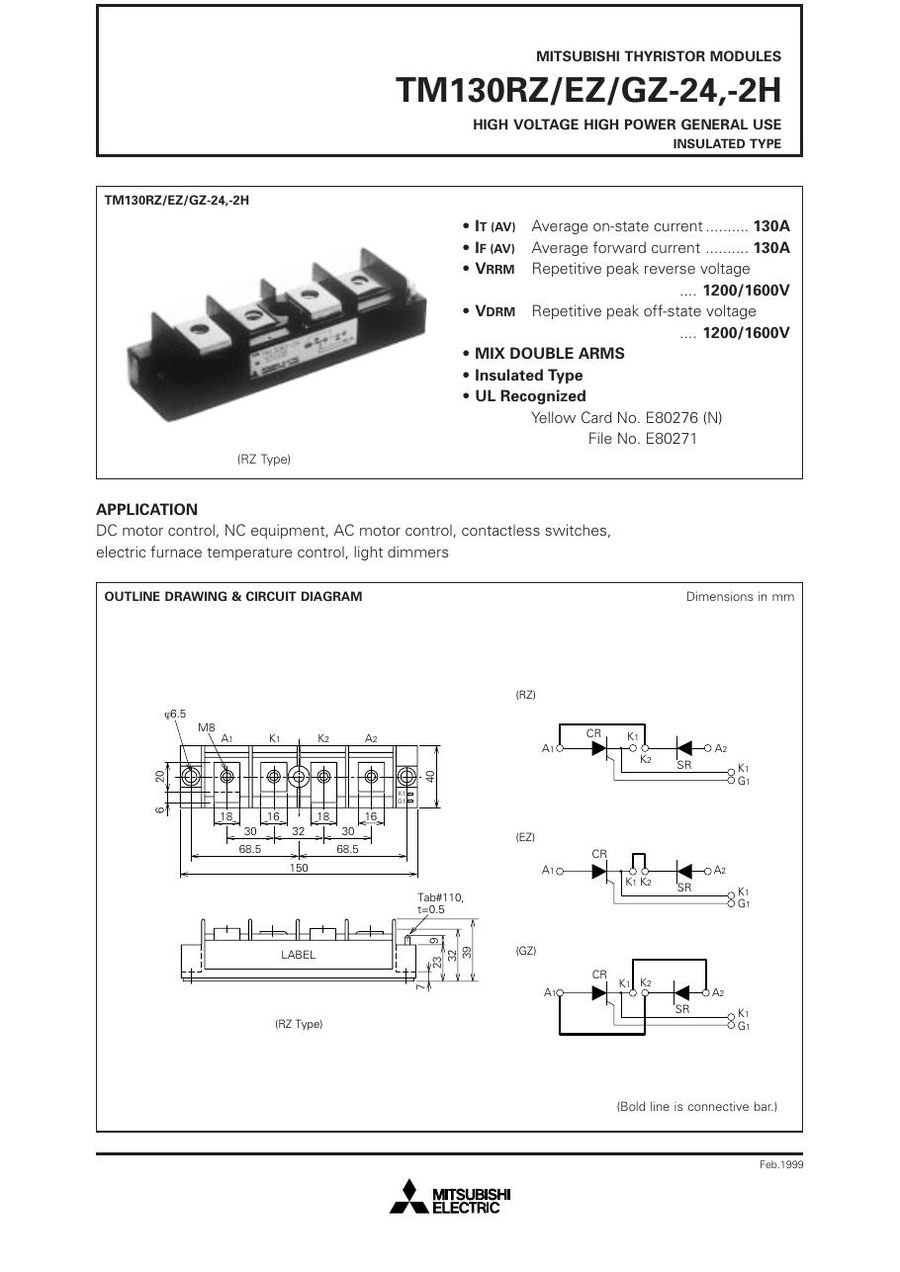

TM130RZ-2H PDF Datasheet
