TM90RZ-2H Mitsubishi - Thyristor Module

TM90RZ-2H Description

The Mitsubishi Electric TM90RZ-2H is a thyristor module, rated for 1600 V and 90 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Request a quote for the TM90RZ-2H and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi TM90RZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM90RZ-2H is a 90 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	90 A

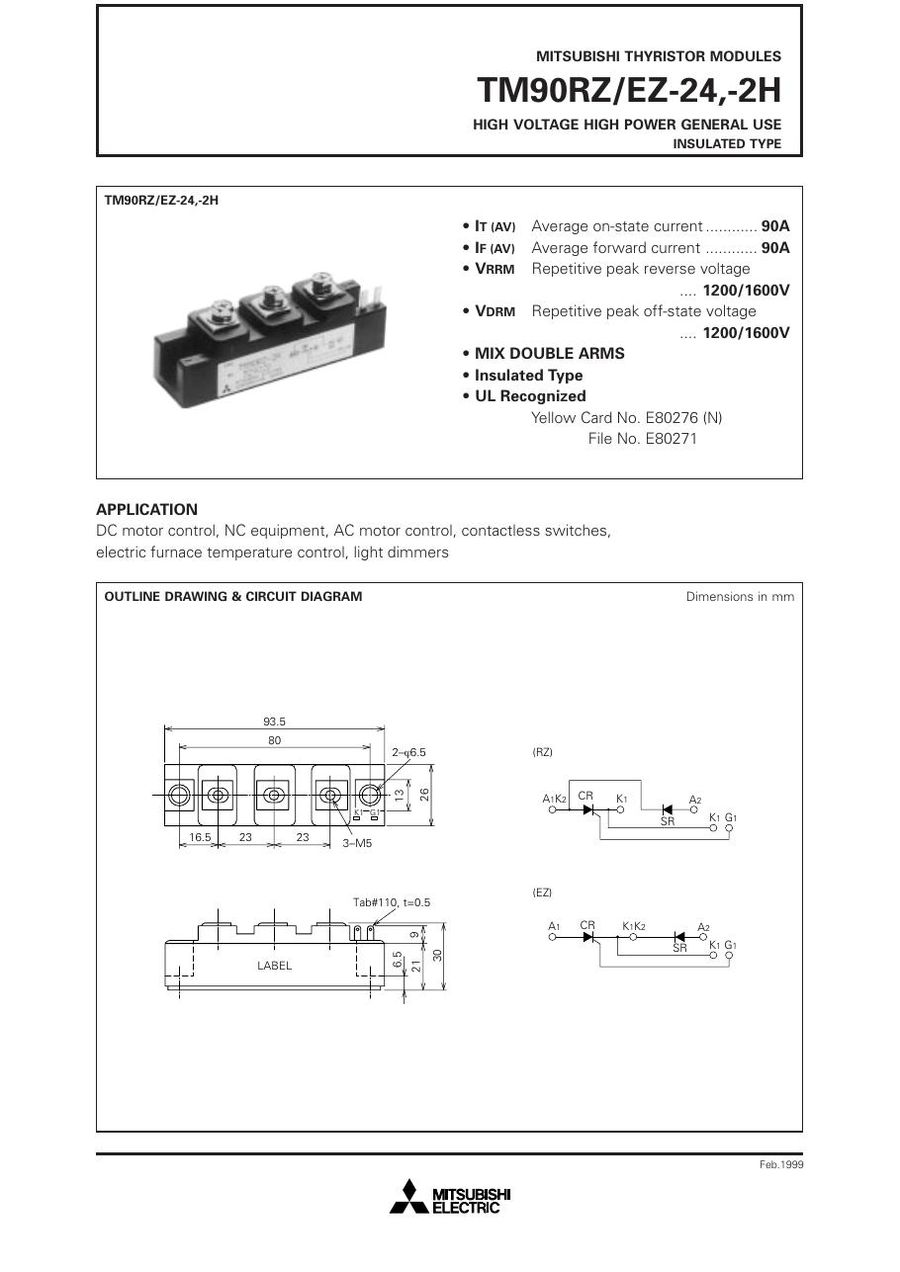

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM90RZ-2H (reply within 24 hours)
