TM130PZ-H Mitsubishi - Thyristor / Diode Module

TM130PZ-H Description

Mitsubishi Electric TM130PZ-H is a thyristor module rated at 800 V and 130 A. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the TM130PZ-H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi TM130PZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130PZ-H is a 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	130 A

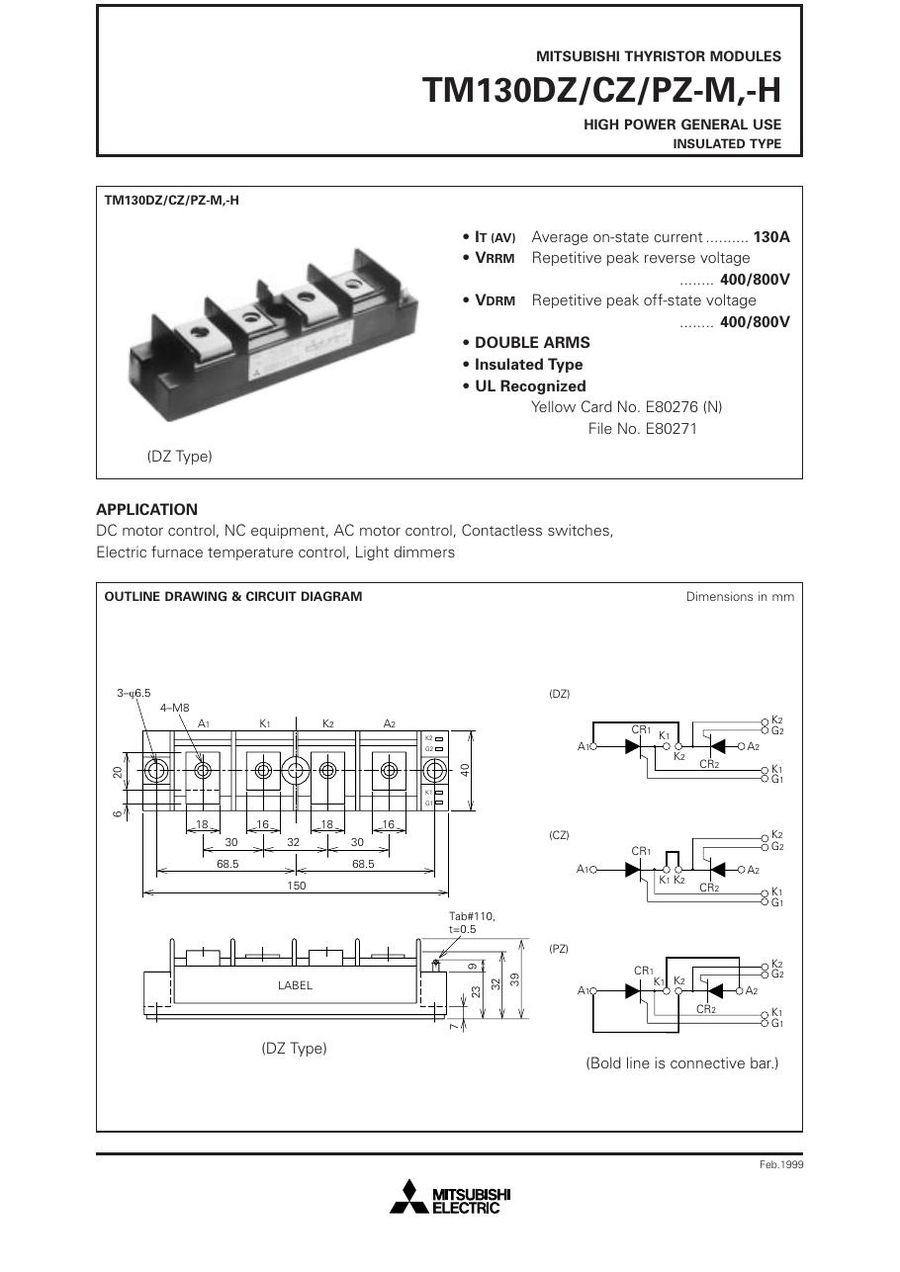

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM130PZ-H (reply within 24 hours)
