TM25RZ-2H Mitsubishi - Thyristor / Diode Module

TM25RZ-2H Description

Mitsubishi Electric TM25RZ-2H is a thyristor module rated at 1600 V and 25 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Need the TM25RZ-2H? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi TM25RZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM25RZ-2H is a 25 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	25 A

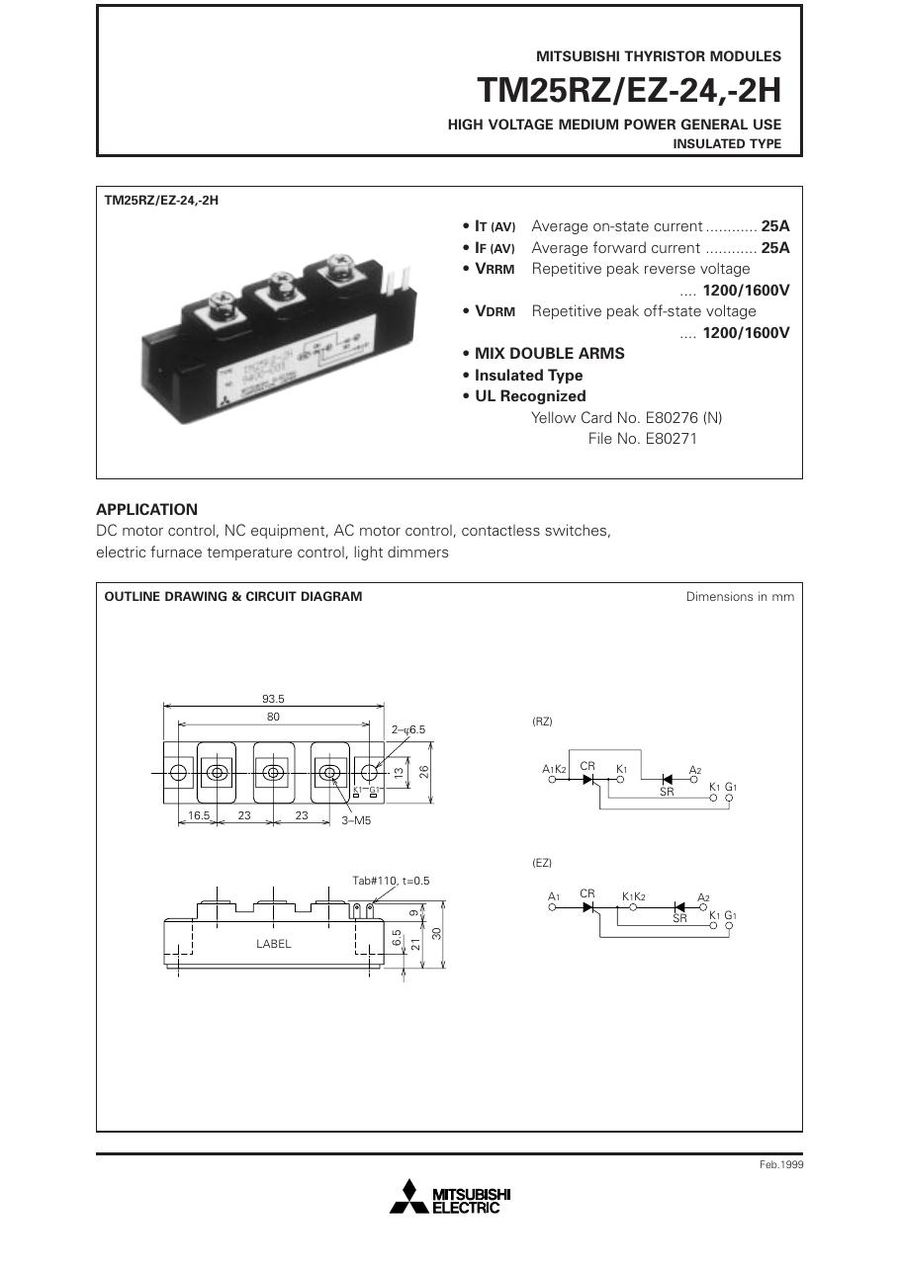

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM25RZ-2H (reply within 24 hours)
