TM90RZ-24 Mitsubishi - Thyristor / Diode Module

TM90RZ-24 Description

The TM90RZ-24 from Mitsubishi Electric is a thyristor module. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Need the TM90RZ-24? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi TM90RZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM90RZ-24 is a 1,200 V, 90 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	90 A

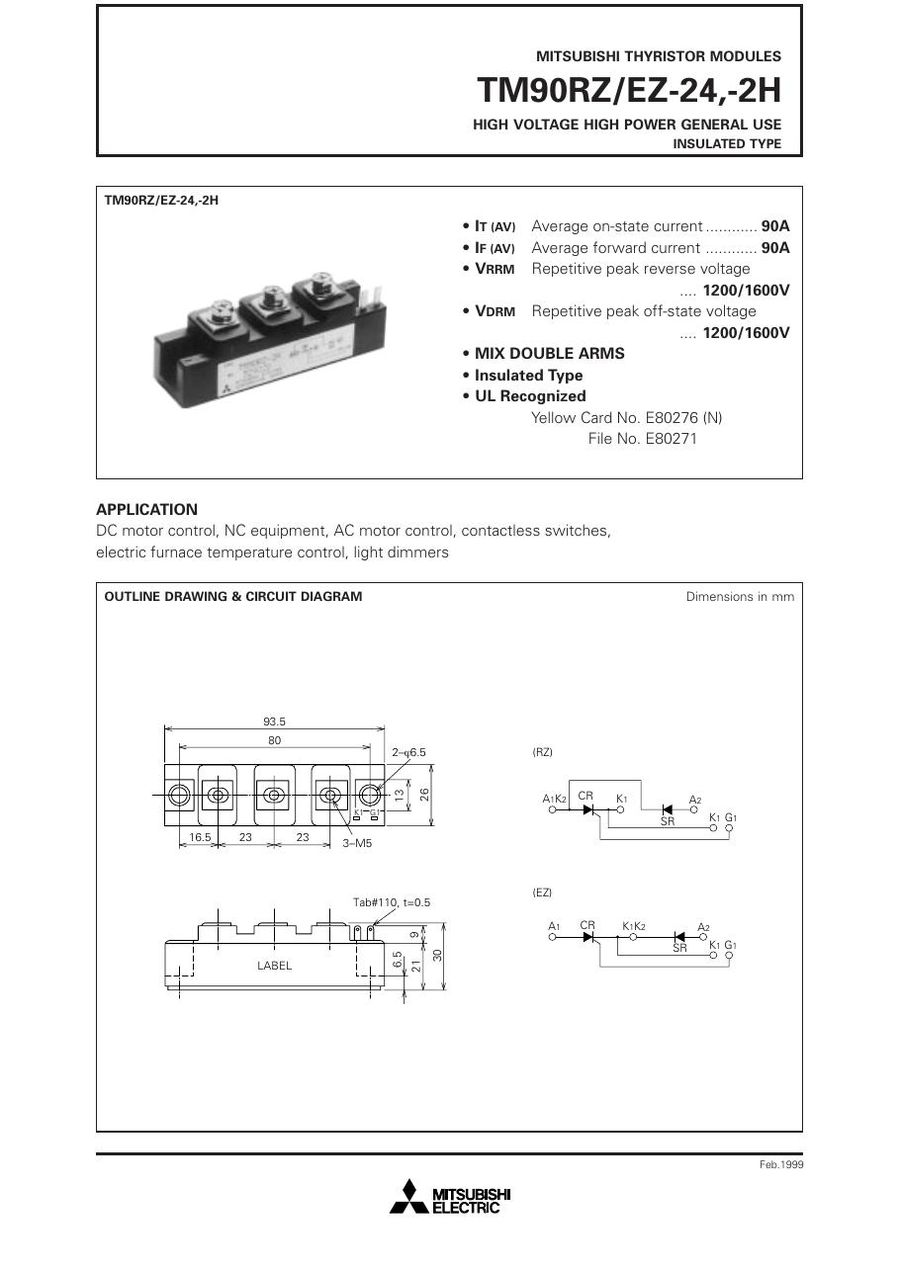

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM90RZ-24 (reply within 24 hours)
