TM130GZ-H Mitsubishi - Thyristor / Diode Module

TM130GZ-H Description

The Mitsubishi Electric TM130GZ-H is a thyristor module, rated for 800 V and 130 A. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

We help engineers and repair technicians find parts like the TM130GZ-H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi TM130GZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130GZ-H is a 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	130 A

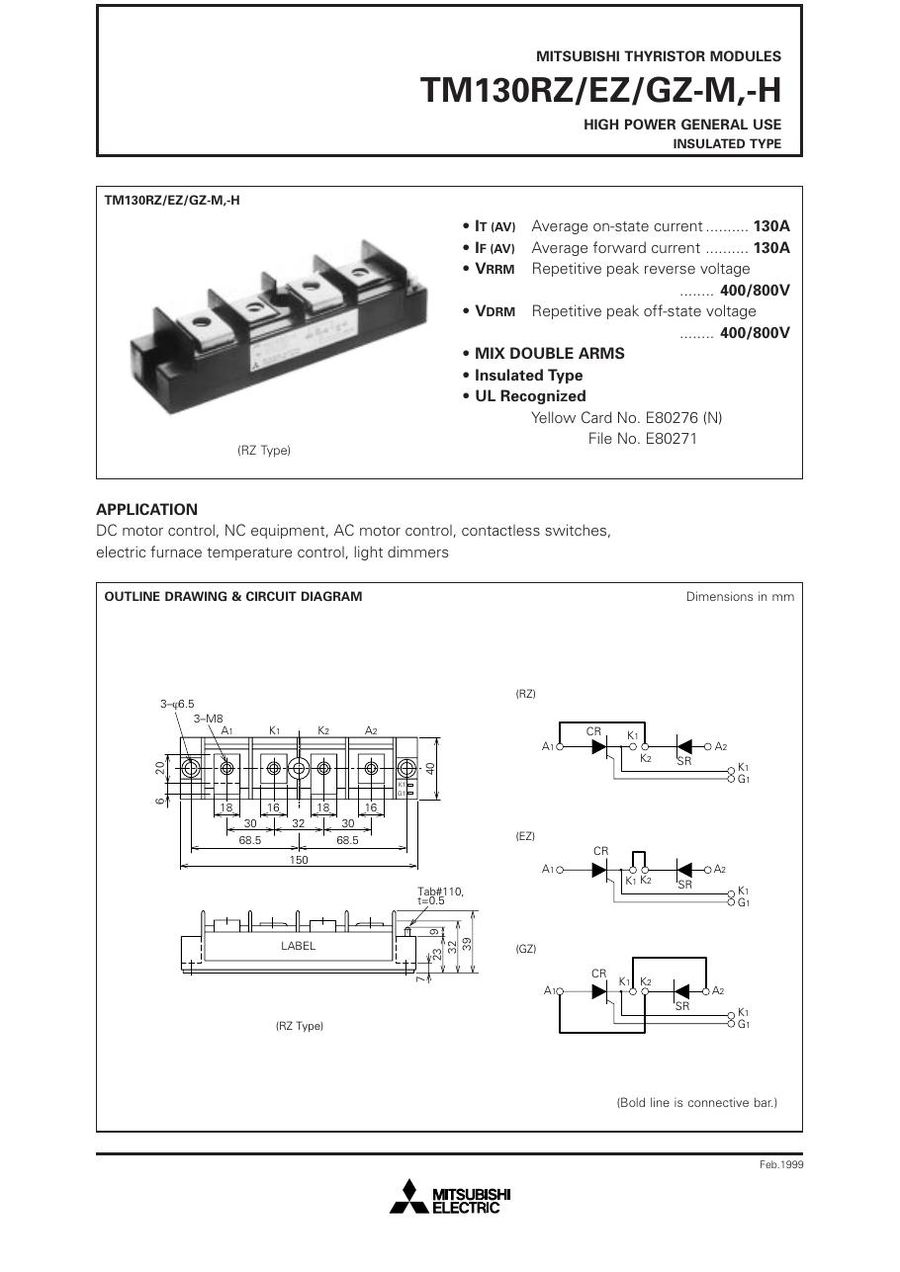

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM130GZ-H (reply within 24 hours)
