TM130PZ-24 Mitsubishi - Thyristor / Diode Module

TM130PZ-24 Description

Mitsubishi Electric TM130PZ-24 is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Looking for a replacement TM130PZ-24? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi TM130PZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130PZ-24 is a 1,200 V, 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	130 A

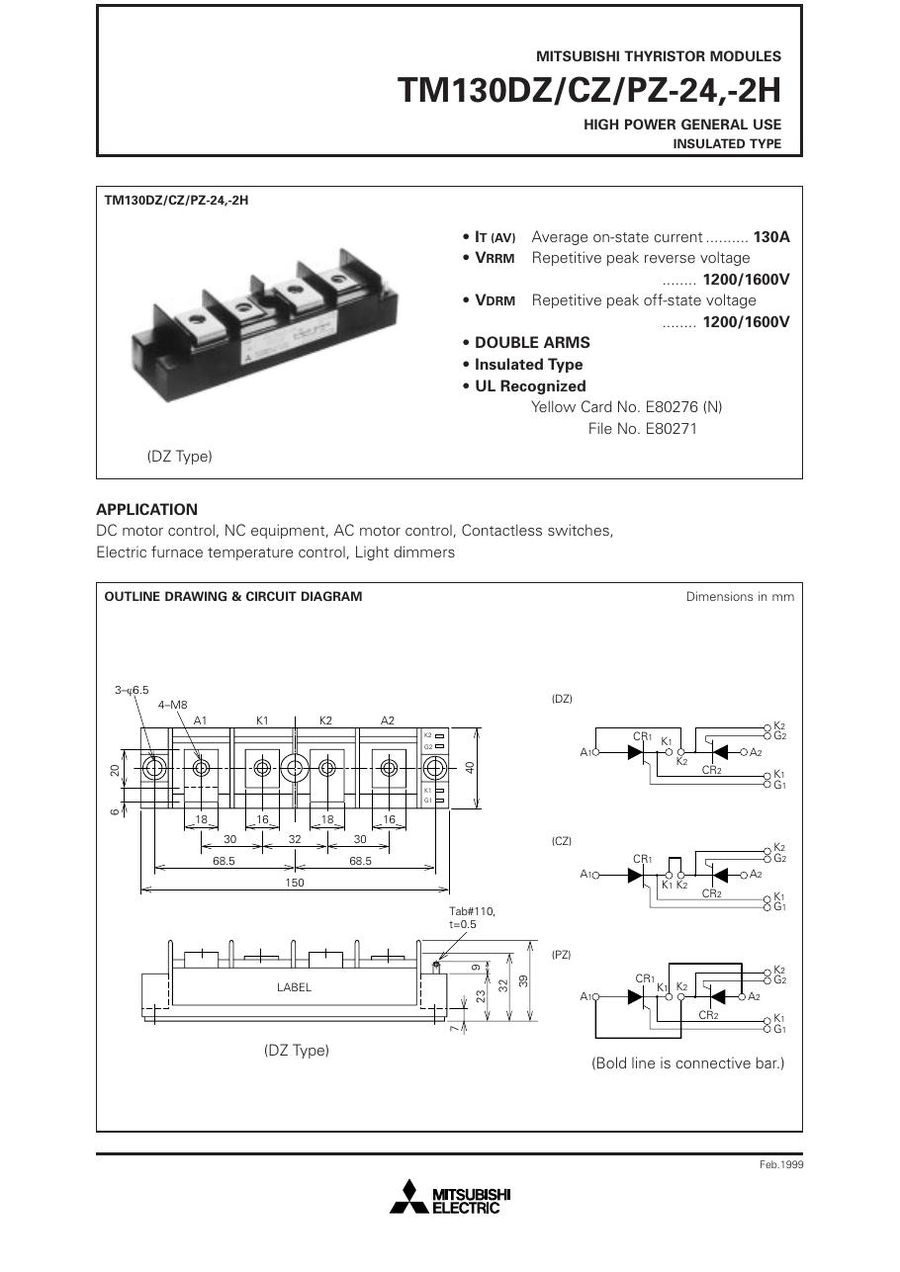

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM130PZ-24 (reply within 24 hours)
