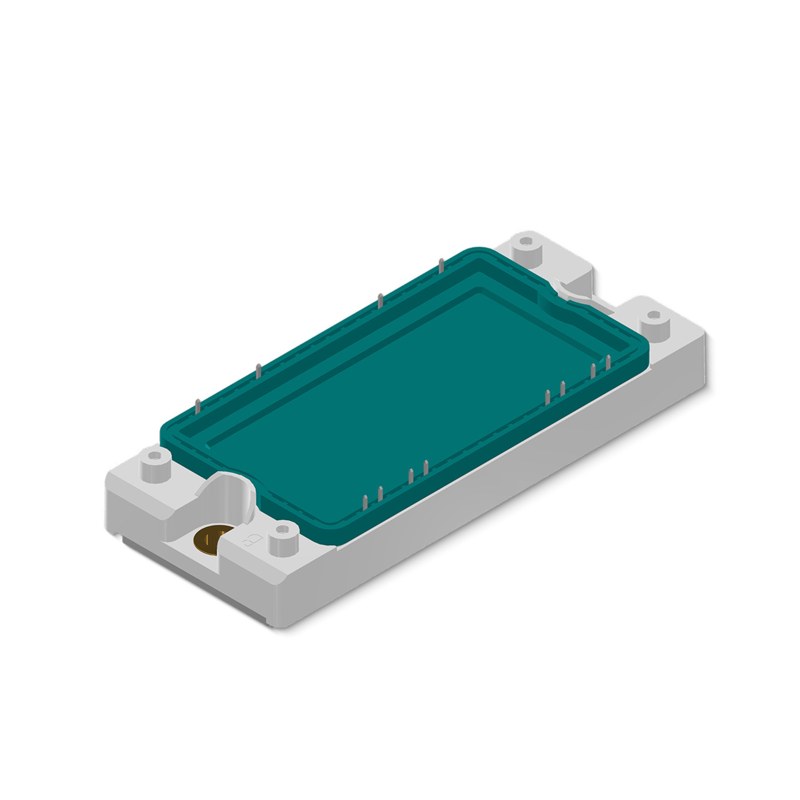

MIXG360RF1200PTED IXYS - IGBT Module
MIXG360RF1200PTED Description
MIXG360RF1200PTED is a 1200 V / 532 A XPT IGBT module from IXYS (E2-Pack package). Typical applications: AC motor drives, Solar inverter, Medical equipment, Uninterruptible power supply, Air-conditioning systems, Welding equipment, Switched-mode and resonant-mode power supplies, Inductive heating, cookers, Pumps, Fans cally trained staff. The user will have to evaluate the suitab ications of our components may not be considered as an assuran uld you require product information in excess of the data give . information on the types in question please contact your local or life support applications, please notify. For any such appl delivery dependent on the realization of any such measures..
USComponent supplies MIXG360RF1200PTED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- X2PT - 2nd generation Xtreme light Punch Through
- Short circuit rated for 10 µsec.
- Very low gate charge
- Low EMI
- Square RBSOA @ 2x Ic
- Thin wafer technology combined with X2PT design results in a competitive low VCE(sat)
- Easy paralleling due to the positive temperature coefficient of the on-state voltage
- SONIC diode
- Fast and soft reverse recovery
- Low operating forward voltage Terms and Conditions of Usage The data contained in this product data sheet is exclusively intended for techni the completeness of the product data with respect to his application. The specif information in the valid application- and assembly notes must be considered. Sho the specific application of your product, please contact your local sales office Due to technical requirements our product may contain dangerous substances. For Should you intend to use the product in aviation, in health or life endangering
Target Applications
IXYS MIXG360RF1200PTED is used for AC motor drives, Solar inverter, Medical equipment, Uninterruptible power supply, Air-conditioning systems, Welding equipment, Switched-mode and resonant-mode power supplies, Inductive heating, cookers, Pumps, Fans cally trained staff. The user will have to evaluate the suitab ications of our components may not be considered as an assuran uld you require product information in excess of the data give . information on the types in question please contact your local or life support applications, please notify. For any such appl delivery dependent on the realization of any such measures.
Key Specifications
MIXG360RF1200PTED is a 1200 V / 532 A XPT IGBT module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | IXYS (Littelfuse) |
| Product type | XPT IGBT module |
| Configuration | Boost/Brake Chopper + free wheeling Diode + NTC |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC25, Tc = 25 °C) | 532 A |
| Package | E2-Pack |
| Isolation voltage | 3600 V~ |
| Supply status | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for MIXG360RF1200PTED (reply within 24 hours)
