MIXA10WB1200TED IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 17A

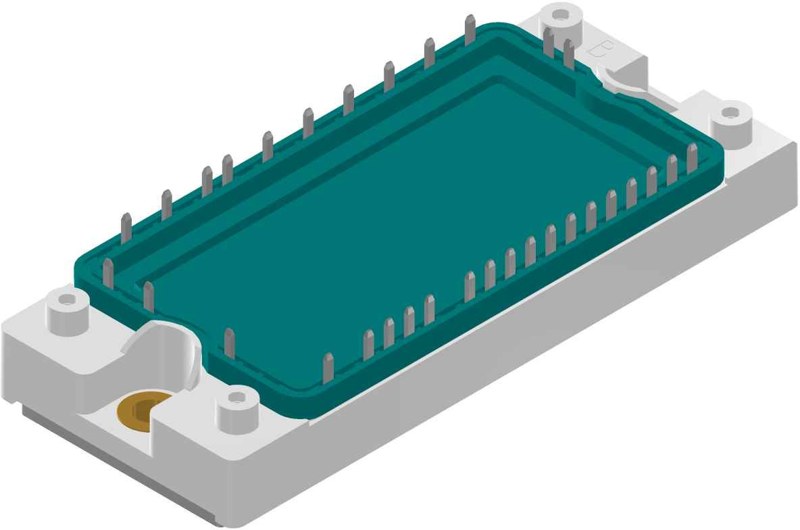

MIXA10WB1200TED IXYS IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MIXA10WB1200TED Description

MIXA10WB1200TED is a 1200 V / 17 A converter-brake-inverter (CBI) IGBT module from IXYS (E2-Pack package).

USComponent supplies MIXA10WB1200TED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

IXYS MIXA10WB1200TED finds applications in various industries and systems where high power switching is required.

Key Specifications

MIXA10WB1200TED is a 1200 V / 17 A converter-brake-inverter (CBI) IGBT module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeConverter-brake-inverter (CBI) IGBT module
ConfigurationConverter + Brake + Inverter
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)17 A
PackageE2-Pack
Weight175 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MIXA10WB1200TED as obsolete. USComponent can still source MIXA10WB1200TED and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MIXA10WB1200TED (reply within 24 hours)
