MIXA225RF1200TSF IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 360A

MIXA225RF1200TSF IXYS IGBT Module

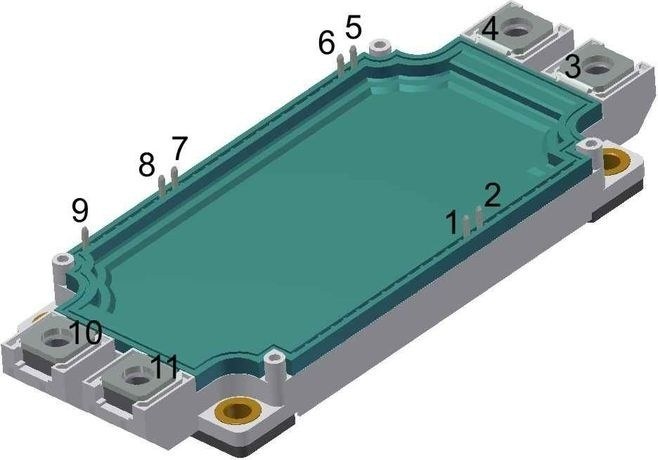

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MIXA225RF1200TSF Description

MIXA225RF1200TSF is a 1200 V / 360 A XPT IGBT module from IXYS (SimBus F package). Typical applications: brake for AC motor drives, Boost chopper, Switch reluctance drives.

USComponent supplies MIXA225RF1200TSF and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High level of integration - only one power semiconductor module required for the whole drive
  • Short circuit rated for 10 μsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 3x Ic
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • Temperature sense included
  • SONIC diode
  • Fast and soft reverse recovery
  • Low operating forward voltage

Target Applications

IXYS MIXA225RF1200TSF is used for Brake for AC motor drives, Boost chopper, Switch reluctance drives.

Key Specifications

MIXA225RF1200TSF is a 1200 V / 360 A XPT IGBT module from IXYS (now part of Littelfuse) in a SimBus F package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeXPT IGBT module
ConfigurationBoost chopper + free wheeling Diodes + NTC
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)360 A
PackageSimBus F
Weight350 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MIXA225RF1200TSF as obsolete. USComponent can still source MIXA225RF1200TSF and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MIXA225RF1200TSF (reply within 24 hours)
