MIXA20WB1200TED IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 17A

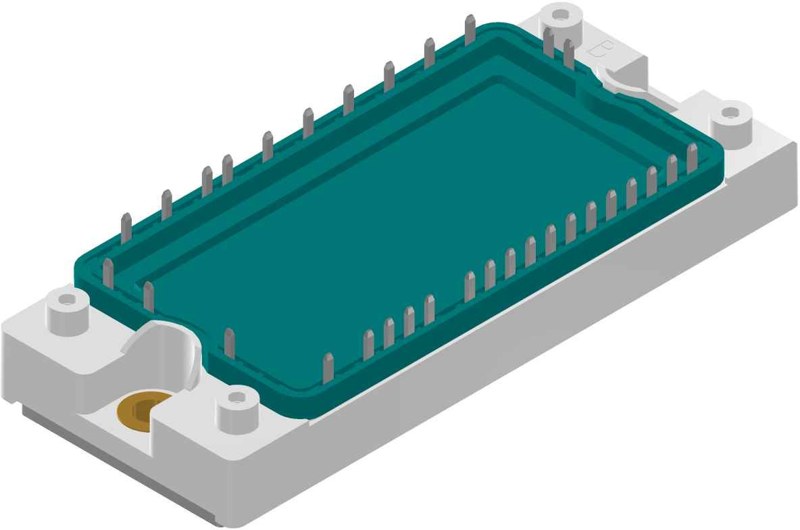

MIXA20WB1200TED IXYS IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

MIXA20WB1200TED Description

MIXA20WB1200TED is a 1200 V / 17 A converter-brake-inverter (CBI) IGBT module from IXYS (E2-Pack package).

USComponent supplies MIXA20WB1200TED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

IXYS MIXA20WB1200TED finds applications in various industries and systems where high power switching is required.

Key Specifications

MIXA20WB1200TED is a 1200 V / 17 A converter-brake-inverter (CBI) IGBT module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeConverter-brake-inverter (CBI) IGBT module
ConfigurationConverter + Brake + Inverter
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)17 A
PackageE2-Pack
Weight175 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MIXA20WB1200TED as obsolete. USComponent can still source MIXA20WB1200TED and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MIXA20WB1200TED (reply within 24 hours)

Related Part Numbers

MIXA225RF1200TSFMIXA10WB1200TEDMIXA150Q1200VAMIXA150R1200VA
MIXA30WB1200TEDMIXA40WB1200TEDMIXA60HU1200VAMIXA60WB1200TEH
MIXA60WH1200TEHMIXA80R1200VAMIXA80WB1200TEHMIXG240RF1200PTED
MIXG360RF1200PTEDMIO1200-33E11MIO1500-25E10MIO1800-17E10
