MIXA60HU1200VA IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 85A

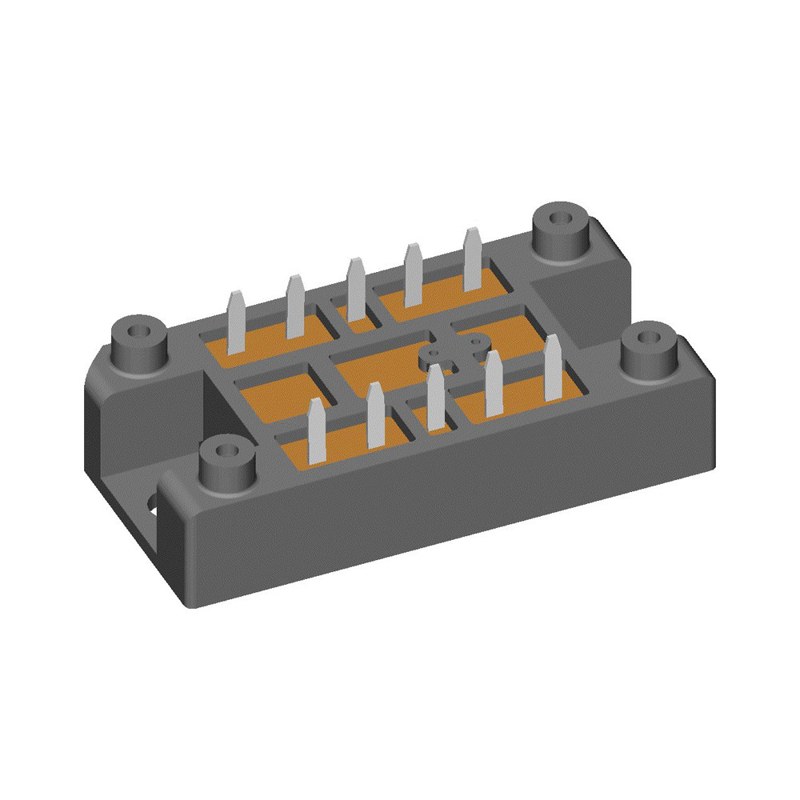

MIXA60HU1200VA IXYS IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

MIXA60HU1200VA Description

MIXA60HU1200VA is a 1200 V / 85 A XPT IGBT module from IXYS (V1-A-Pack package). Typical applications: switched-mode power supplies, Switched reluctance motor drive.

USComponent supplies MIXA60HU1200VA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Easy paralleling due to the positive temperature coefficient of the on-state voltage
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 3x Ic
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • SONIC diode
  • Fast and soft reverse recovery
  • Low operating forward voltage

Target Applications

IXYS MIXA60HU1200VA is used for Switched-mode power supplies, Switched reluctance motor drive.

Key Specifications

MIXA60HU1200VA is a 1200 V / 85 A XPT IGBT module from IXYS (now part of Littelfuse) in a V1-A-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeXPT IGBT module
ConfigurationH-bridge, Buck / Boost - Combination
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)85 A
PackageV1-A-Pack
Isolation voltage3600 V~
Weight900 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MIXA60HU1200VA as obsolete. USComponent can still source MIXA60HU1200VA and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MIXA60HU1200VA (reply within 24 hours)
