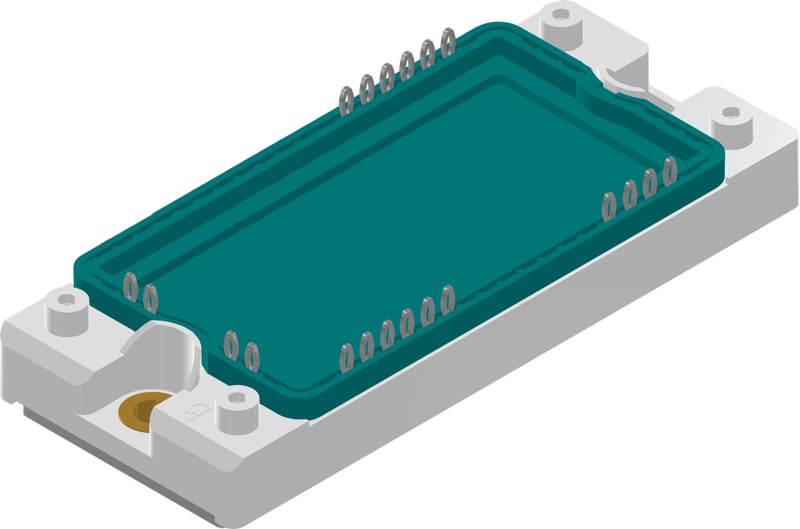

MIXG240RF1200PTED IXYS - IGBT Module

MIXG240RF1200PTED Description

MIXG240RF1200PTED is a 1200 V / 335 A XPT IGBT module from IXYS (E2-Pack package). Typical applications: AC motor drives, Solar inverter, Medical equipment, Uninterruptible power supply, Air-conditioning systems, Welding equipment, Switched-mode and resonant-mode power supplies, Inductive heating, cookers, Pumps, Fans cally trained staff. The user will have to evaluate the suitab ications of our components may not be considered as an assuran uld you require product information in excess of the data give . information on the types in question please contact your local or life support applications, please notify. For any such appl delivery dependent on the realization of any such measures..

USComponent supplies MIXG240RF1200PTED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MIXG240RF1200PTED is used for AC motor drives, solar inverters, medical equipment, uninterruptible power supplies, air-conditioning systems, welding equipment, switched-mode and resonant-mode power supplies, inductive heating, cookers, pumps and fans.

Key Specifications

MIXG240RF1200PTED is a 1200 V / 335 A XPT IGBT module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	XPT IGBT module
Configuration	Boost/Brake Chopper + free wheeling Diode + NTC
Collector-emitter voltage (VCES)	1200 V
Collector current (IC25, Tc = 25 °C)	335 A
Package	E2-Pack
Isolation voltage	3600 V~
Weight	270 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIXG240RF1200PTED (reply within 24 hours)
