MIXA150Q1200VA IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 250A

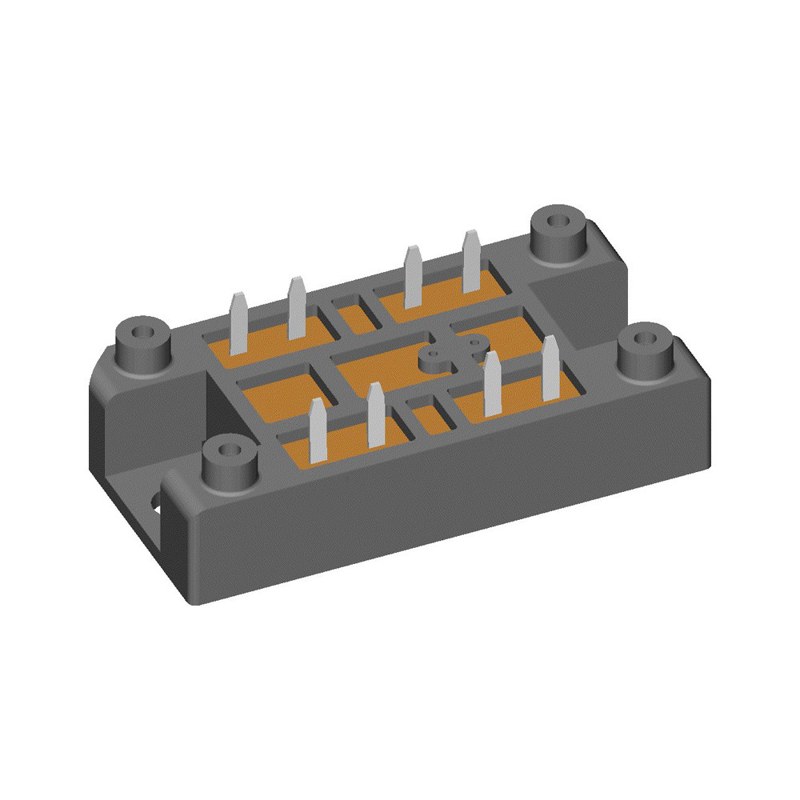

MIXA150Q1200VA IXYS IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MIXA150Q1200VA Description

MIXA150Q1200VA is a 1200 V / 250 A XPT IGBT module from IXYS (V1-A-Pack package). Typical applications: switched-mode power supplies, Switched reluctance motor drive.

USComponent supplies MIXA150Q1200VA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Easy paralleling due to the positive temperature coefficient of the on-state voltage
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 3x Ic
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • SONIC diode
  • Fast and soft reverse recovery
  • Low operating forward voltage

Target Applications

IXYS MIXA150Q1200VA is used for Switched-mode power supplies, Switched reluctance motor drive.

Key Specifications

MIXA150Q1200VA is a 1200 V / 250 A XPT IGBT module from IXYS (now part of Littelfuse) in a V1-A-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeXPT IGBT module
ConfigurationBuck Chopper
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)250 A
PackageV1-A-Pack
Isolation voltage3600 V~
Weight900 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MIXA150Q1200VA (reply within 24 hours)
