MIXA60WH1200TEH IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 60A

MIXA60WH1200TEH IXYS IGBT Module

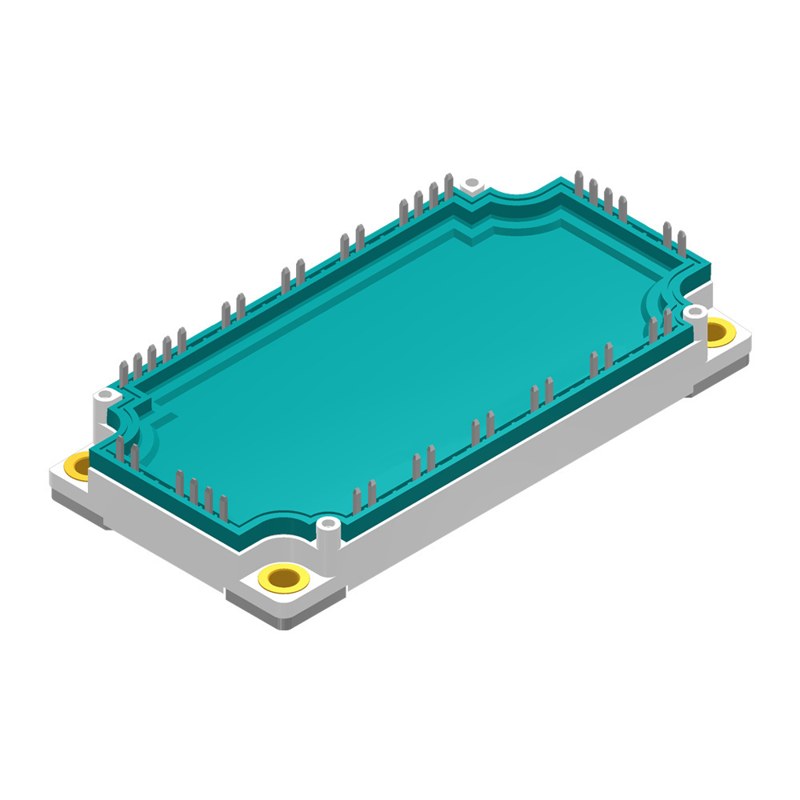

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MIXA60WH1200TEH Description

MIXA60WH1200TEH is a 1200 V / 60 A XPT IGBT module from IXYS (E3-Pack package). Typical applications: AC motor drives, Solar inverter, Medical equipment, Uninterruptible power supply, Air-conditioning systems, Welding equipment, Switched-mode and resonant-mode power supplies, Inductive heating, cookers, Pumps, Fans.

USComponent supplies MIXA60WH1200TEH and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Thyristor/Standard Rectifier for line frequency
  • Easy paralleling due to the positive temperature coefficient of the on-state voltage
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 3x Ic
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • SONIC diode
  • Fast and soft reverse recovery
  • Low operating forward voltage

Target Applications

IXYS MIXA60WH1200TEH is used for AC motor drives, Solar inverter, Medical equipment, Uninterruptible power supply, Air-conditioning systems, Welding equipment, Switched-mode and resonant-mode power supplies, Inductive heating, cookers, Pumps, Fans.

Key Specifications

MIXA60WH1200TEH is a 1200 V / 60 A XPT IGBT module from IXYS (now part of Littelfuse) in a E3-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeXPT IGBT module
Configuration6-Pack + Three-phase rectifier bridge, half-controlled (high-side) & Brake Unit + NTC
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)60 A
PackageE3-Pack
Weight270 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MIXA60WH1200TEH as obsolete. USComponent can still source MIXA60WH1200TEH and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MIXA60WH1200TEH (reply within 24 hours)
