F3L100R07W2H3_B11 Infineon - IGBT Module

Also written as: F3L100R07W2H3-B11

Category: IGBT Modules

Specifications: 650V, 100A

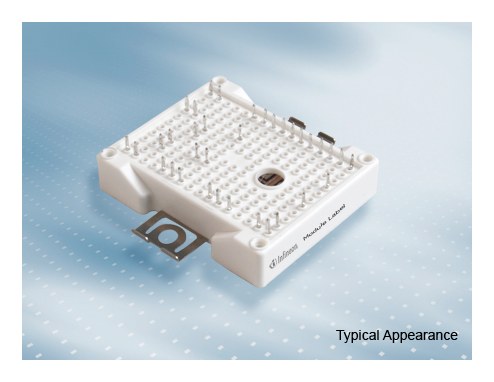

F3L100R07W2H3_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L100R07W2H3_B11 Description

F3L100R07W2H3_B11 is a 650 V / 100 A 3-level IGBT module from Infineon Technologies. Typical applications: three-level applications, Motor drives, Solar applications, UPS systems.

USComponent supplies F3L100R07W2H3_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased blocking voltage capability up to 650 V
  • Low inductive design
  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Compact design

Target Applications

Infineon F3L100R07W2H3_B11 is used for Three-level applications, Motor drives, Solar applications, UPS systems.

Key Specifications

F3L100R07W2H3_B11 is a 650 V / 100 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)100 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L100R07W2H3_B11 (reply within 24 hours)
