F3L400R07W3S5_B59 Infineon - IGBT Module

Also written as: F3L400R07W3S5-B59

Category: IGBT Modules

Specifications: 650V, 200A

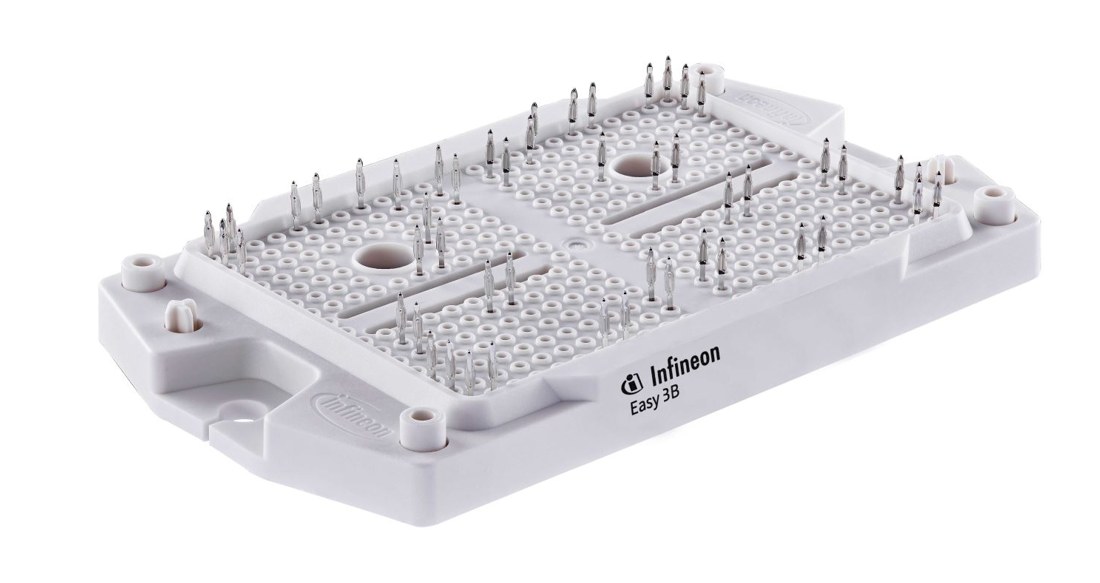

F3L400R07W3S5_B59 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L400R07W3S5_B59 Description

F3L400R07W3S5_B59 is a 650 V / 200 A 3-level IGBT module from Infineon Technologies. Typical applications: solar applications.

USComponent supplies F3L400R07W3S5_B59 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Compact design
  • PressFIT contact technology
  • Integrated NTC temperature sensor
  • High power density

Target Applications

Infineon F3L400R07W3S5_B59 is used for Solar applications.

Key Specifications

F3L400R07W3S5_B59 is a 650 V / 200 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)200 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L400R07W3S5_B59 (reply within 24 hours)
