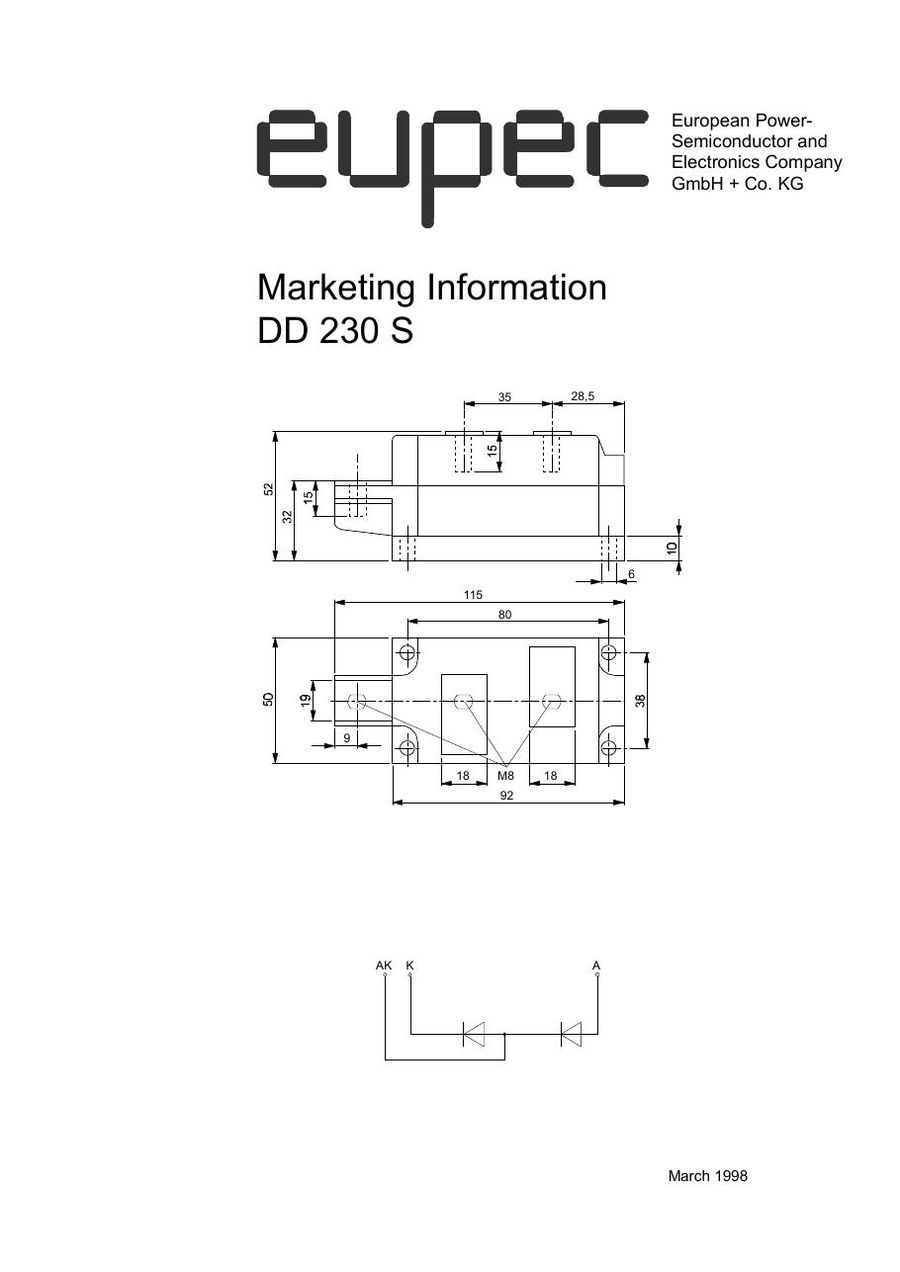

DD230S12Infineon - Diode Module

DD230S12 Description

The Infineon Technologies DD230S12 is a diode module. Typical applications for this type of device include input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the DD230S12.

Summary of Features

Target Applications

Infineon DD230S12 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

DD230S12 is a 1,200 V, 230 A diode module (dual). Source: manufacturer datasheet.

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM)	1,200 V
Rated forward / output current	230 A
Datasheet	Available on this page (PDF)

Download DD230S12 Datasheet

DD230S12 PDF Datasheet
