DD230S16K Infineon - Thyristor / Diode Module

DD230S16K Description

Rated at 1600 V and 230 A, the Infineon Technologies DD230S16K is a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the DD230S16K; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon DD230S16K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

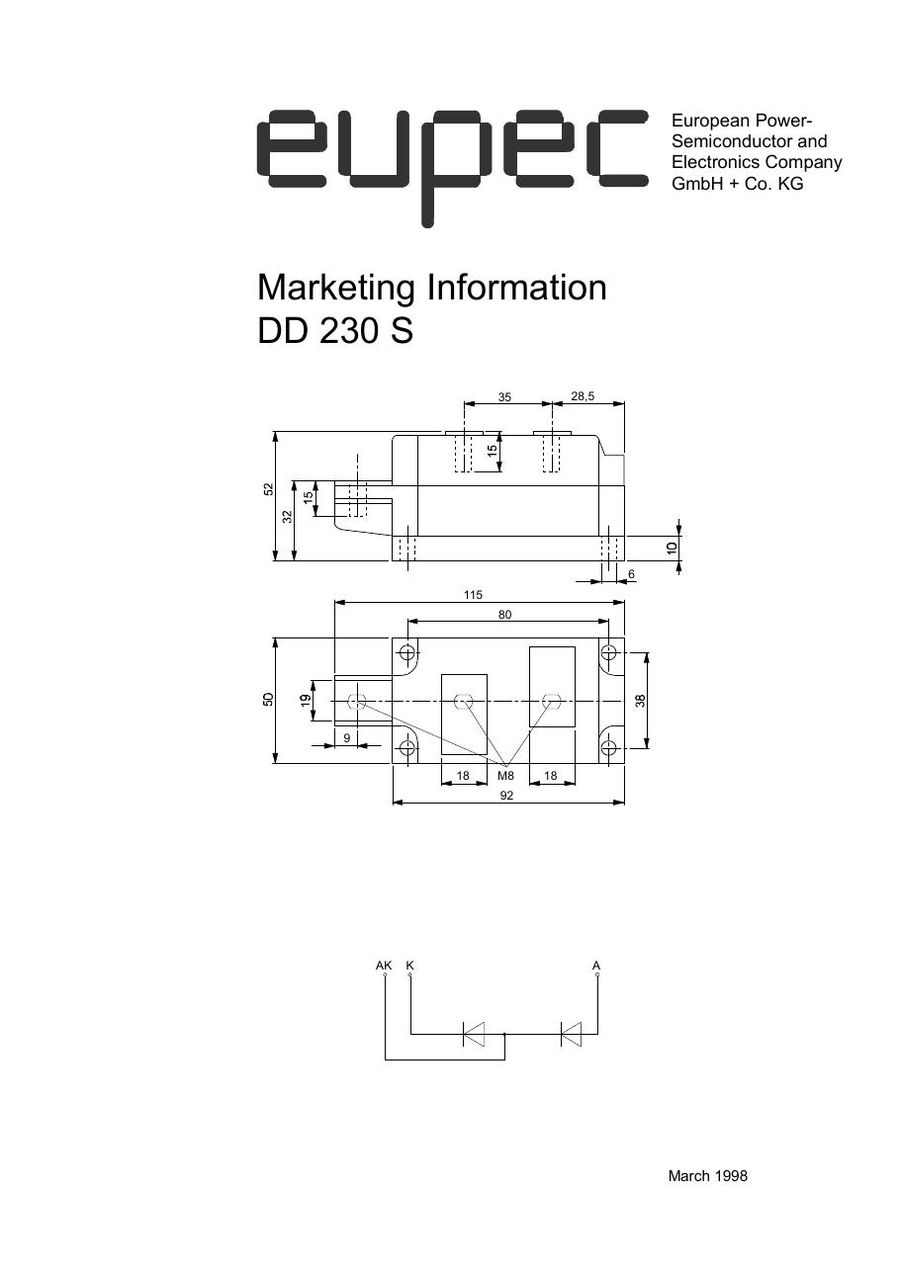

DD230S16K is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

Parameter	Value
Manufacturer	eupec (Infineon Technologies)
Product type	PowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM), series range	1800 to 2600 V
Average forward current (IFAVM), 180° el sin	230 A at Tc = 100 °C
RMS current (IFRMSM)	410 A
Surge current (IFSM), 10 ms, Tvj max	7500 A
I²t, 10 ms, Tvj max	281.00 × 10³ A²s
Threshold voltage V(T0)	1.00 V
Slope resistance rT	0.8 mΩ
Thermal resistance RthJC	0.15 °C/W
Thermal resistance RthCK	0.04 °C/W
Max. junction temperature Tvj max	150 °C
Package (outline)	DP50

Technical document (PDF)  |  Request a quote for DD230S16K (reply within 24 hours)
