DD121S16 Infineon - Diode Module

Category: Diode & Rectifier Modules

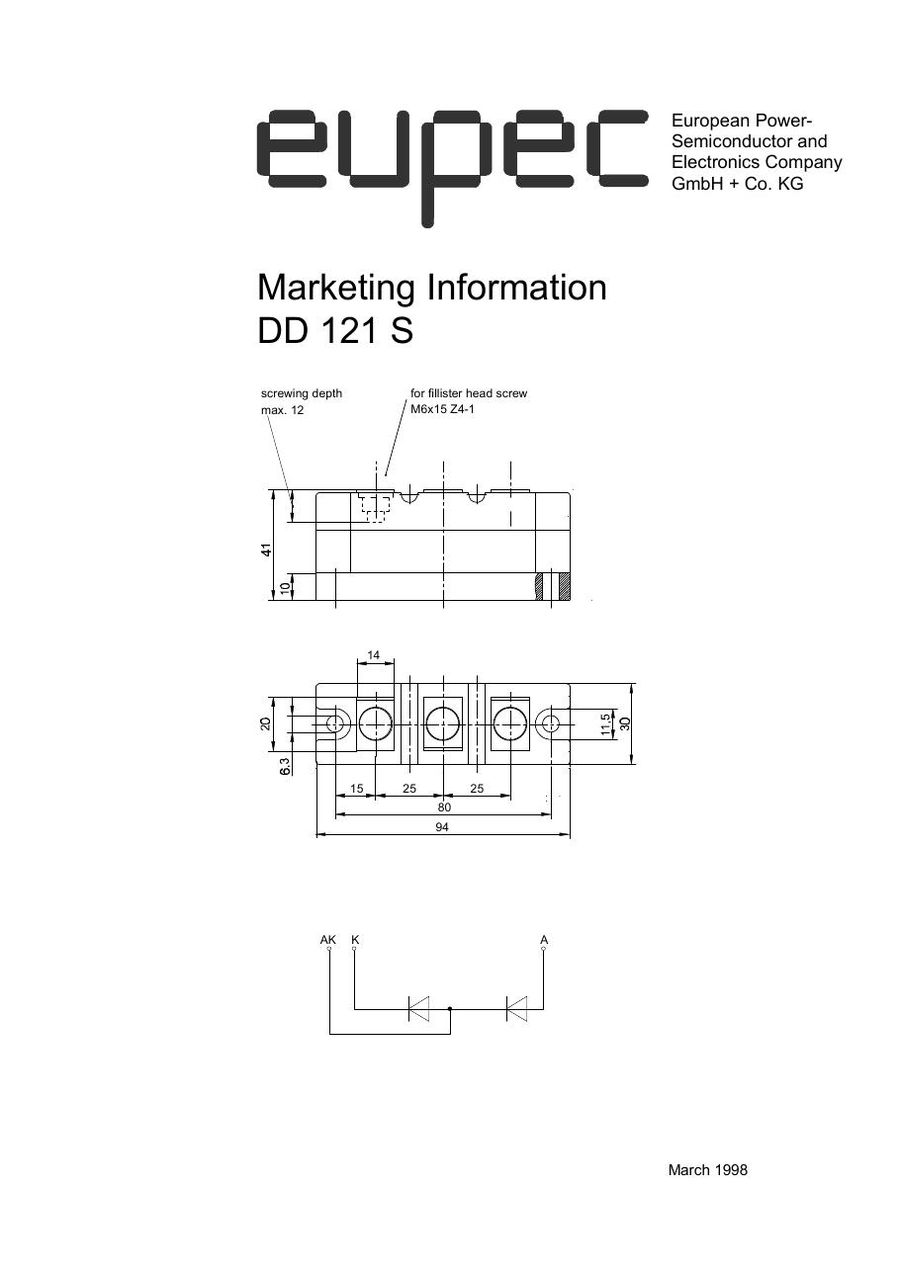

DD121S16 Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD121S16 Description

Infineon Technologies DD121S16 is a diode module. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the DD121S16 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

Infineon DD121S16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

DD121S16 is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM), series range1000 to 1400 V
Average forward current (IFAVM), 180° el sin121 A at Tc = 100 °C
RMS current (IFRMSM)200 A
Surge current (IFSM), 10 ms, Tvj max2000 A
I²t, 10 ms, Tvj max20.00 × 10³ A²s
Threshold voltage V(T0)0.95 V
Slope resistance rT1.7 mΩ
Peak reverse recovery current IRM95 A
Thermal resistance RthJC0.28 °C/W
Thermal resistance RthCK0.06 °C/W
Max. junction temperature Tvj max150 °C
Package (outline)DP30

Technical document (PDF)  |  Request a quote for DD121S16 (reply within 24 hours)
