DD46S12 Infineon - Diode Module

Category: Diode & Rectifier Modules

DD46S12 Infineon Diode Module

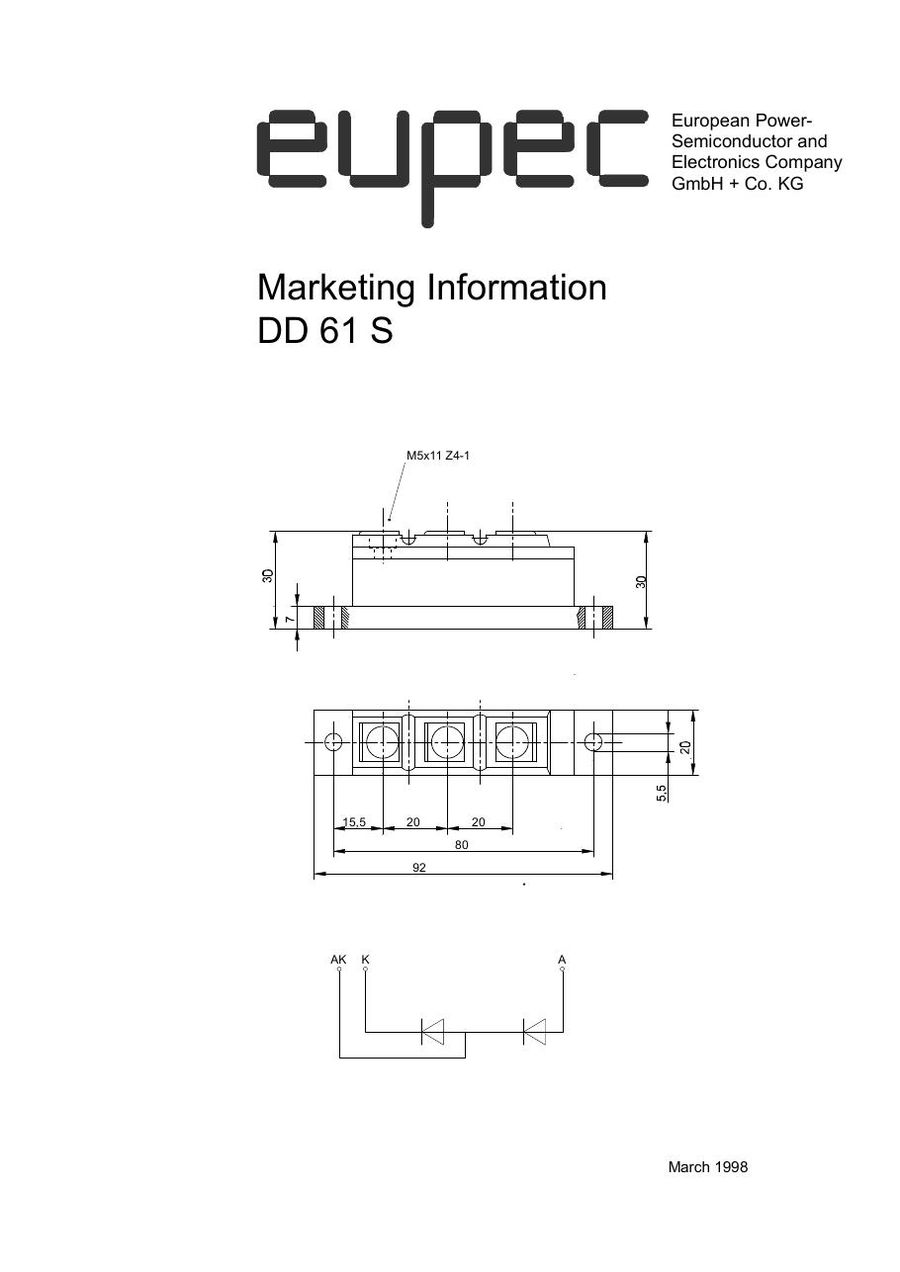

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD46S12 Description

Infineon Technologies DD46S12 is a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the DD46S12; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Infineon DD46S12 finds applications in various industries and systems where high power switching is required.

Key Specifications

DD46S12 is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM)1200 V (series 800 to 1200 V)
Average forward current (IFAVM), 180° el sin45 A at Tc = 85 °C
RMS current (IFRMSM)100 A
Surge current (IFSM), 10 ms, Tvj max850 A
I²t, 10 ms, Tvj max3.60 × 10³ A²s
Threshold voltage V(T0)0.90 V
Slope resistance rT3.9 mΩ
Thermal resistance RthJC0.68 °C/W
Thermal resistance RthCK0.16 °C/W
Max. junction temperature Tvj max125 °C
Package (outline)DP20

Technical document (PDF)  |  Request a quote for DD46S12 (reply within 24 hours)
