DD230S16 Infineon - Diode Module

Category: Diode & Rectifier Modules

DD230S16 Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD230S16 Description

Infineon Technologies makes the DD230S16, a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the DD230S16, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Target Applications

Infineon DD230S16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

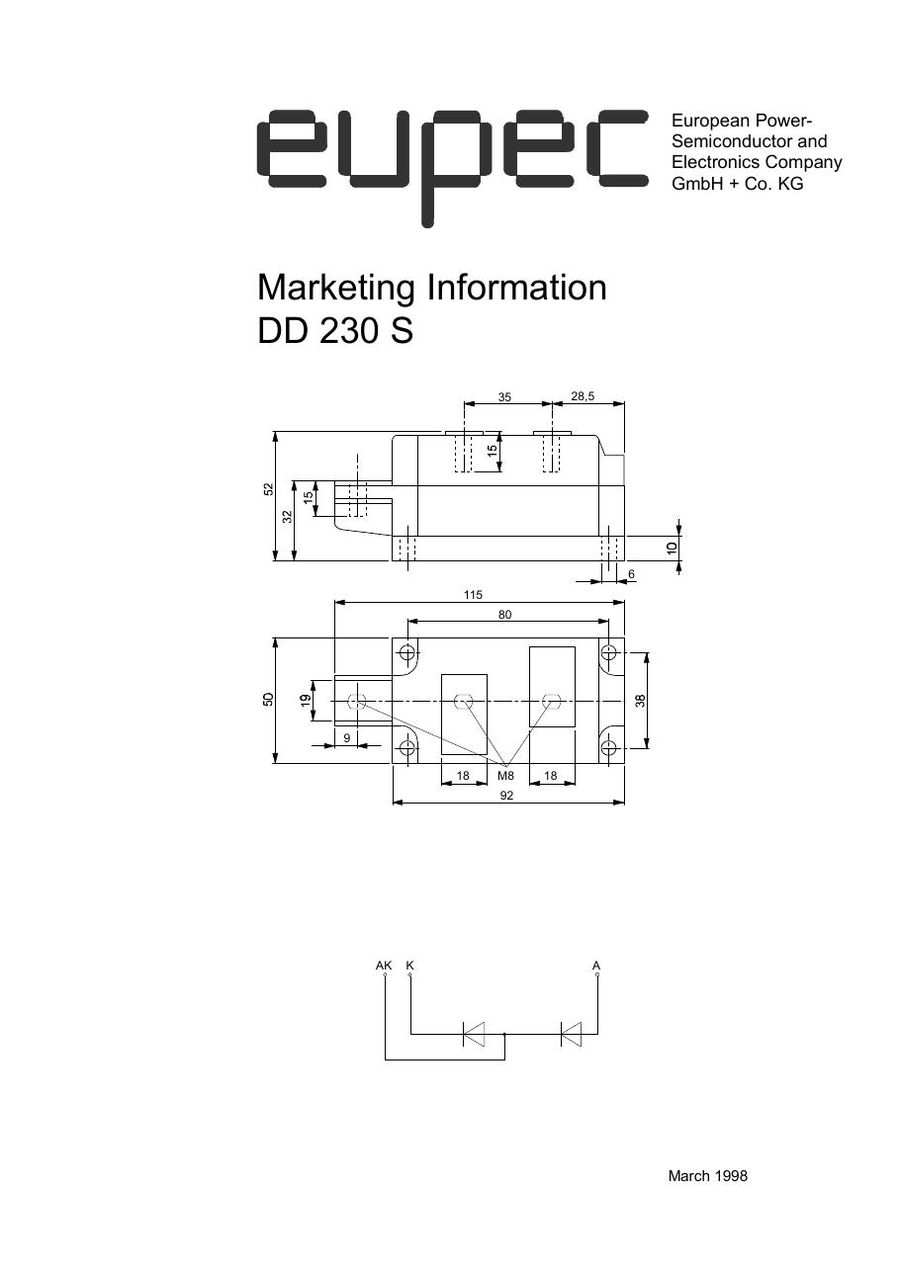

DD230S16 is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM), series range1800 to 2600 V
Average forward current (IFAVM), 180° el sin230 A at Tc = 100 °C
RMS current (IFRMSM)410 A
Surge current (IFSM), 10 ms, Tvj max7500 A
I²t, 10 ms, Tvj max281.00 × 10³ A²s
Threshold voltage V(T0)1.00 V
Slope resistance rT0.8 mΩ
Thermal resistance RthJC0.15 °C/W
Thermal resistance RthCK0.04 °C/W
Max. junction temperature Tvj max150 °C
Package (outline)DP50

Technical document (PDF)  |  Request a quote for DD230S16 (reply within 24 hours)
