MG25Q6ES42 Toshiba - IGBT Module

MG25Q6ES42 Description

The MG25Q6ES42 from Toshiba is an IGBT module with a 1200 V / 25 A rating. Inside, it has six switches arranged as a three-phase bridge (6-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the MG25Q6ES42, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Toshiba MG25Q6ES42 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

MG25Q6ES42 is a 1,200 V, 25 A IGBT / power transistor module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT / power transistor module
Configuration	Six-pack
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	25 A

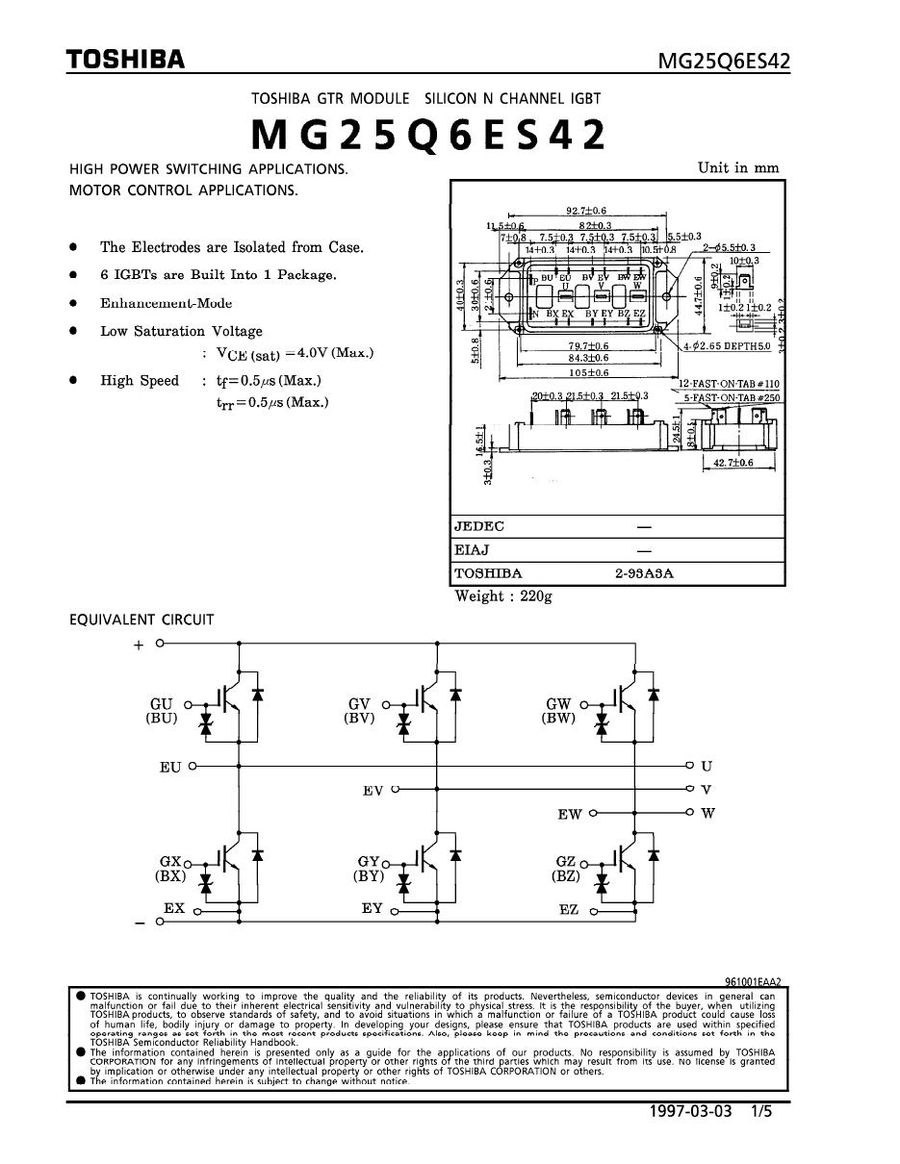

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MG25Q6ES42 (reply within 24 hours)
