MG15Q6ES42 Toshiba - IGBT Module

MG15Q6ES42 Description

Toshiba MG15Q6ES42 is an IGBT module rated at 1200 V and 15 A. The module contains six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the MG15Q6ES42, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Toshiba MG15Q6ES42 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

MG15Q6ES42 is a 1,200 V, 15 A IGBT / power transistor module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT / power transistor module
Configuration	Six-pack
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	15 A

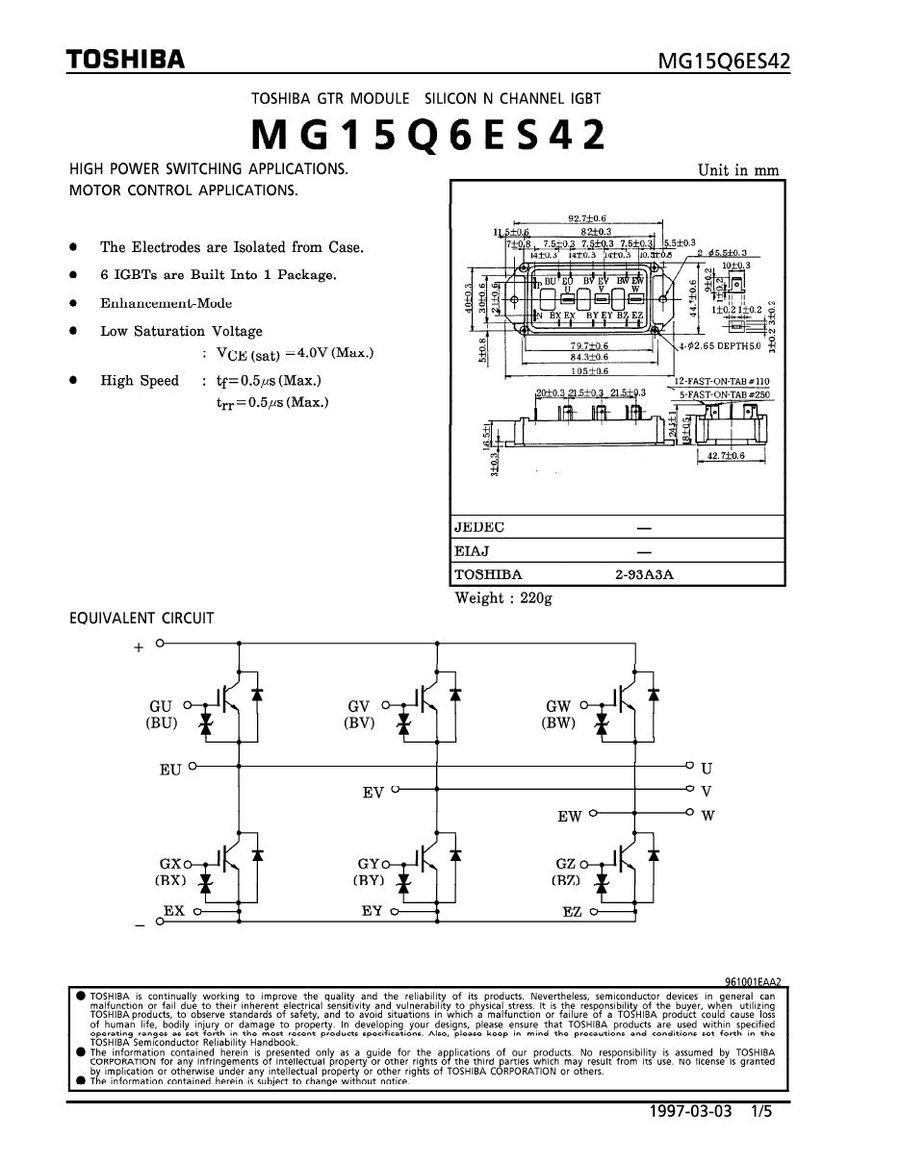

Datasheet	Available on this page (PDF)
