PSS75SA2F6 Mitsubishi - Intelligent Power Module

Replacement for: Mitsubishi Electric recommends PSS75SA2F6 as the replacement for PS21A7A. We also supply the original part.

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 75A

PSS75SA2F6 Mitsubishi Intelligent Power Module

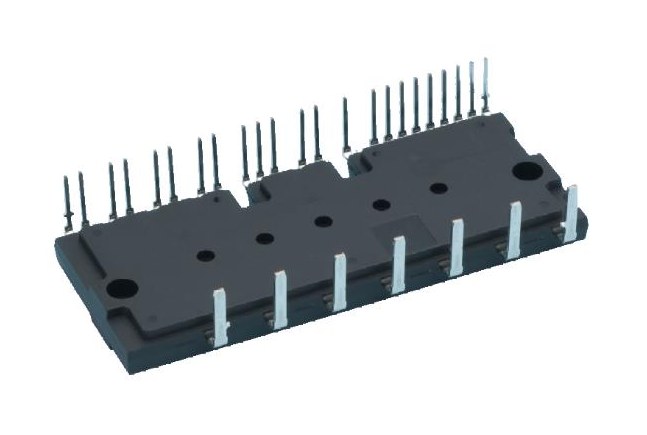

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PSS75SA2F6 Description

PSS75SA2F6 is a 600 V / 75 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Large package). Typical applications: AC 100～240Vrms(DC voltage:400V or below)class low power motor control.

USComponent supplies PSS75SA2F6 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 3 phase DC/AC inverter
  • 600V / 75A
  • Built-in LPT-CSTBT (7th generation IGBT)
  • Built-in bootstrap diodes with current limiting resistor
  • Insulated transfer molding package
  • N-side IGBT open emitter

Target Applications

Mitsubishi PSS75SA2F6 is used for AC 100～240Vrms(DC voltage:400V or below)class low power motor control.

Key Specifications

PSS75SA2F6 is a 600 V / 75 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeDIPIPM (dual in-line intelligent power module)
SeriesVer.6
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)600 V
Collector current (IC)75 A
PackageLarge
Package size31 x 79 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PSS75SA2F6 (reply within 24 hours)
