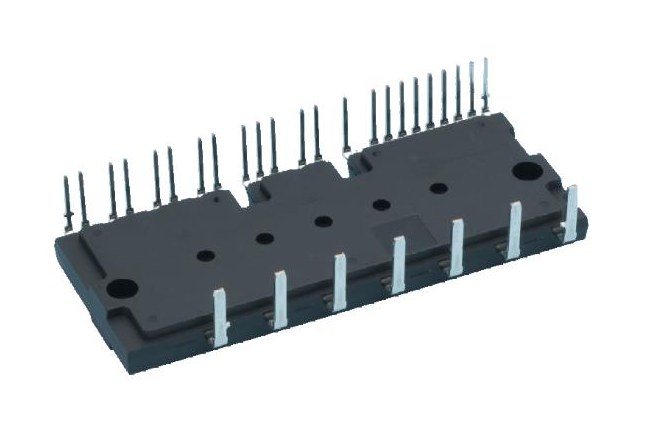

PSS35SA2FT Mitsubishi - Intelligent Power Module

PSS35SA2FT Description

PSS35SA2FT is a 1200 V / 35 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Large package). Typical applications: AC 400V class motor control.

USComponent supplies PSS35SA2FT and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS35SA2FT is used for AC 400V class motor control.

Key Specifications

PSS35SA2FT is a 1200 V / 35 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.6
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	35 A
Package	Large
Package size	31 x 79 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PSS35SA2FT (reply within 24 hours)
