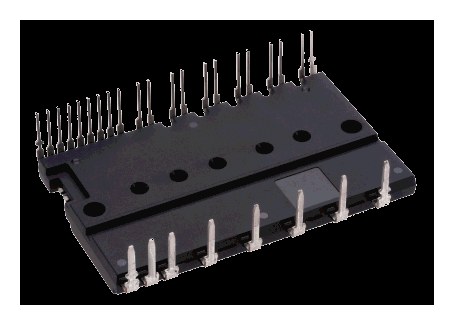

PSS30S71F6 Mitsubishi - Intelligent Power Module

PSS30S71F6 Description

PSS30S71F6 is a 600 V / 30 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Mini package). Typical applications: AC 100~240Vrms(DC voltage:400V or below) class low power motor control.

USComponent supplies PSS30S71F6 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS30S71F6 is used for AC 100~240Vrms(DC voltage:400V or below) class low power motor control.

Key Specifications

PSS30S71F6 is a 600 V / 30 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.4
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	30 A
Package	Mini
Package size	31 x 52.5 mm
Supply status (Mitsubishi)	Not Recommended for New Designs
Datasheet	Available on this page (PDF)

Status: Mitsubishi Electric lists PSS30S71F6 as Not Recommended for New Designs. USComponent can still source PSS30S71F6 and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for PSS30S71F6 (reply within 24 hours)
