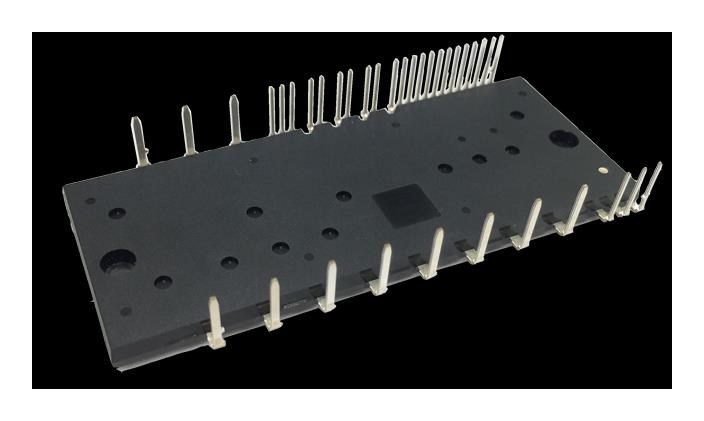

PSS50MC1F6 Mitsubishi - Intelligent Power Module

PSS50MC1F6 Description

PSS50MC1F6 is a 600 V / 50 A CIB (converter + inverter + brake) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (DIPIPM+ package). Typical applications: AC200V three phase motor inverter drive.

USComponent supplies PSS50MC1F6 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS50MC1F6 is used for AC200V three phase motor inverter drive.

Key Specifications

PSS50MC1F6 is a 600 V / 50 A CIB (converter + inverter + brake) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.6
Configuration	CIB (converter + inverter + brake)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	50 A
Isolation voltage (Viso)	2,500 V RMS
Package	DIPIPM+
Package size	34.5 x 85 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)
