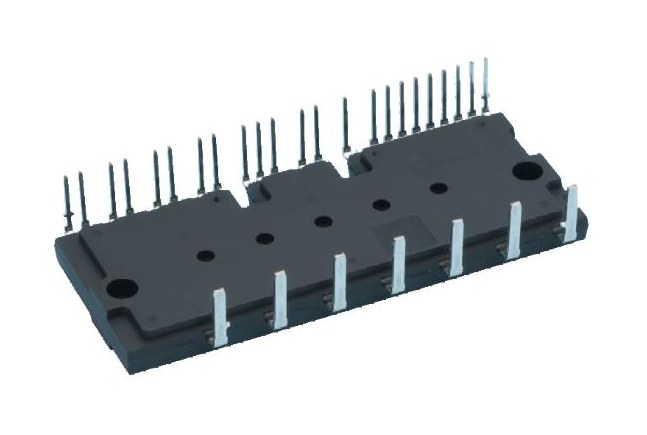

PSS25SA2FT Mitsubishi - Intelligent Power Module
Replacement for: Mitsubishi Electric recommends PSS25SA2FT as the replacement for PS22A76. We also supply the original part.
PSS25SA2FT Description
PSS25SA2FT is a 1200 V / 25 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Large package). Typical applications: AC 400V class motor control.
USComponent supplies PSS25SA2FT and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 3 phase DC/AC inverter
- 1200V / 25A
- Built-in LPT-CSTBT (6th generation IGBT)
- Built-in bootstrap diodes with current limiting resistor
- Insulated transfer molding package
- N-side IGBT open emitter
Target Applications
Mitsubishi PSS25SA2FT is used for AC 400V class motor control.
Key Specifications
PSS25SA2FT is a 1200 V / 25 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | DIPIPM (dual in-line intelligent power module) |
| Series | Ver.6 |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 25 A |
| Package | Large |
| Package size | 31 x 79 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PSS25SA2FT (reply within 24 hours)
Related Part Numbers
| PSS35SA2FT 1200V, 35A | PSS15SA2FT 1200V, 15A | PSS50SA2FT 1200V, 50A | PSS10SA2FT 1200V, 10A |
| PSS75SA2FT 1200V, 75A | PSS05SA2FT 1200V, 5A | PSS25NC1FT 1200V, 25A | PSS25MC1FT 1200V, 25A |
| PSS20S92F6-AG 600V, 20A | PSS20S73F6 600V, 20A | PSS20S71F6 600V, 20A | PSS30S71F6 600V, 30A |
| PSS30S73F6 600V, 30A | PSS30S92F6-AG 600V, 30A | PSS30S93F6-AG 600V, 30A | PSS35MC1FT 1200V, 35A |
