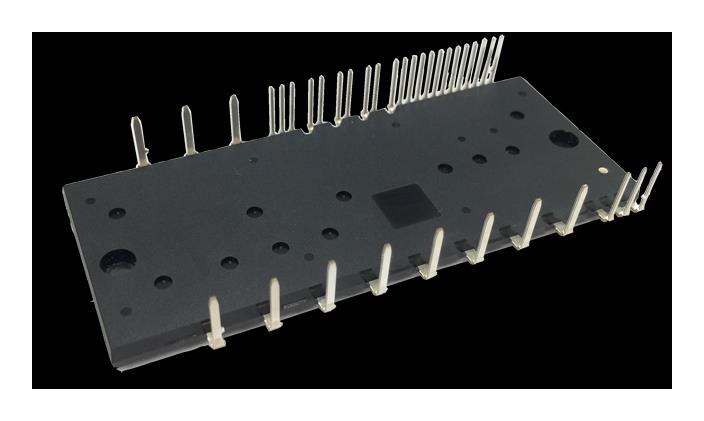

PSS35NC1FT Mitsubishi - Intelligent Power Module

PSS35NC1FT Description

PSS35NC1FT is a 1200 V / 35 A CI (converter + inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (DIPIPM+ package). Typical applications: AC400V three phase motor inverter drive.

USComponent supplies PSS35NC1FT and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi PSS35NC1FT is used for AC400V three phase motor inverter drive.

Key Specifications

PSS35NC1FT is a 1200 V / 35 A CI (converter + inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	DIPIPM (dual in-line intelligent power module)
Series	Ver.6
Configuration	CI (converter + inverter)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	35 A
Package	DIPIPM+
Package size	34.5 x 85 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PSS35NC1FT (reply within 24 hours)
