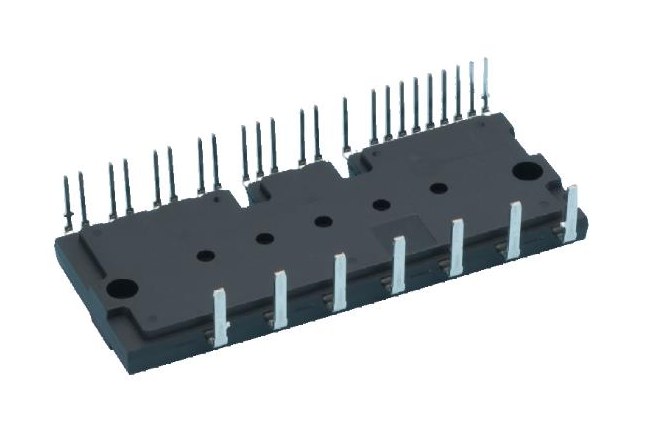

PSS50SA2F6 Mitsubishi - Intelligent Power Module
PSS50SA2F6 Description
PSS50SA2F6 is a 600 V / 50 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Large package). Typical applications: AC 100V～240Vrms(DC voltage:400V or below)class low power motor control.
USComponent supplies PSS50SA2F6 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 3 phase DC/AC inverter
- 600V / 50A
- Built-in LPT-CSTBT (7th generation IGBT)
- Built-in bootstrap diodes with current limiting resistor
- Insulated transfer molding package
- N-side IGBT open emitter
Target Applications
Mitsubishi PSS50SA2F6 is used for AC 100V～240Vrms(DC voltage:400V or below)class low power motor control.
Key Specifications
PSS50SA2F6 is a 600 V / 50 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | DIPIPM (dual in-line intelligent power module) |
| Series | Ver.6 |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 600 V |
| Collector current (IC) | 50 A |
| Package | Large |
| Package size | 31 x 79 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PSS50SA2F6 (reply within 24 hours)
