CM800HC-90R Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 4500V, 800A

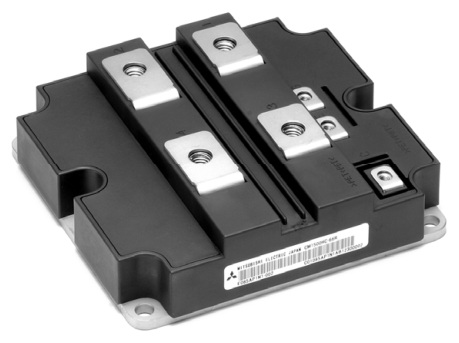

CM800HC-90R Mitsubishi IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

CM800HC-90R Description

CM800HC-90R is a 4,500 V / 800 A high-voltage single igbt module in the HVIGBT HC/HG family from Mitsubishi Electric. Manufacturer lists this part as discontinued. Verify electrical ratings, package, terminals, isolation and exact ordering suffix against the manufacturer datasheet before ordering.

USComponent sources industrial power semiconductor modules including hard-to-find parts. Request a quote for CM800HC-90R price and availability.

Summary of Features

CM800HC-90R: 4,500 V / 800 A high-voltage single igbt module from Mitsubishi Electric, HVIGBT HC/HG.

  • VCES: 4,500 V
  • Catalog current: 800 A
  • Manufacturer status: Discontinued
  • Verify exact suffix and datasheet before purchase

Target Applications

Mitsubishi CM800HC-90R finds applications in various industries and systems where high power switching is required.

Key Specifications

CM800HC-90R is listed in the official Mitsubishi Electric power module catalog.

ParameterValue
ManufacturerMitsubishi Electric
Part numberCM800HC-90R
SeriesHVIGBT HC/HG
Device typeHigh-voltage single IGBT module
Rated VCES4,500 V
Catalog current rating800 A
Manufacturer catalog statusDiscontinued
Official sourceManufacturer product lineup

Specifications are from the manufacturer lineup, not a verified complete product-specific datasheet. Confirm pinout, mechanical fit, gate-drive requirements and current ordering status.

Technical document (PDF)  |  Request a quote for CM800HC-90R (reply within 24 hours)
