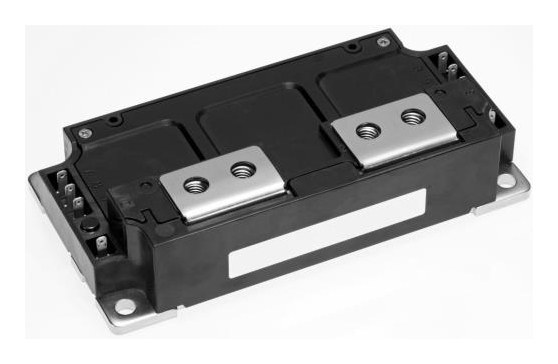

CM800HA-34S Mitsubishi - IGBT Module

CM800HA-34S Description

CM800HA-34S is a 1700 V / 800 A single IGBT module from Mitsubishi Electric (36 package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power.

USComponent supplies CM800HA-34S and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM800HA-34S is used for AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power.

Key Specifications

CM800HA-34S is a 1700 V / 800 A single IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	3-level building block
Configuration	Single
Collector-emitter voltage (VCES)	1700 V
Collector current (IC)	800 A
Isolation voltage (Viso)	4,000 V RMS
Package	36
Package size	67 x 130 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)
