CM1200HC-90R Mitsubishi - IGBT Module

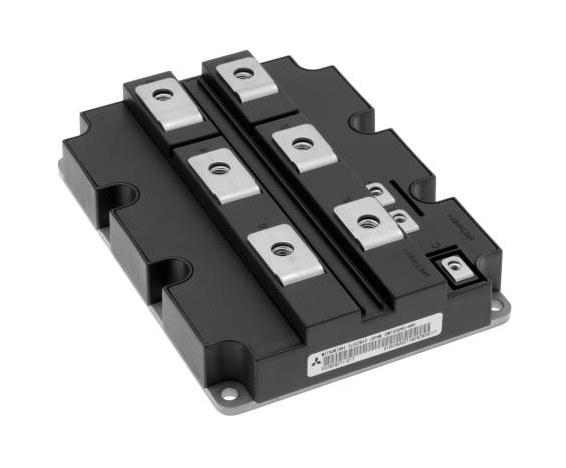

CM1200HC-90R Description

CM1200HC-90R is a 4500 V / 1200 A single HVIGBT module from Mitsubishi Electric (140 x 190 IHM package). Typical applications: traction drives, High Reliability Converters / Inverters, DC choppers.

USComponent supplies CM1200HC-90R and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM1200HC-90R is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Key Specifications

CM1200HC-90R is a 4500 V / 1200 A single HVIGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	HVIGBT module
Series	R series
Configuration	Single
Collector-emitter voltage (VCES)	4500 V
Collector current (IC)	1200 A
Isolation voltage (Viso)	6,000 V RMS
Package	140 x 190 IHM
Package size	140 x 190 mm
Supply status (Mitsubishi)	Not Recommended for New Designs
Datasheet	Available on this page (PDF)

Status: Mitsubishi Electric lists CM1200HC-90R as Not Recommended for New Designs. USComponent can still source CM1200HC-90R and help you find a suitable alternative.
