CM1200HC-90XB Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 4500V, 1200A

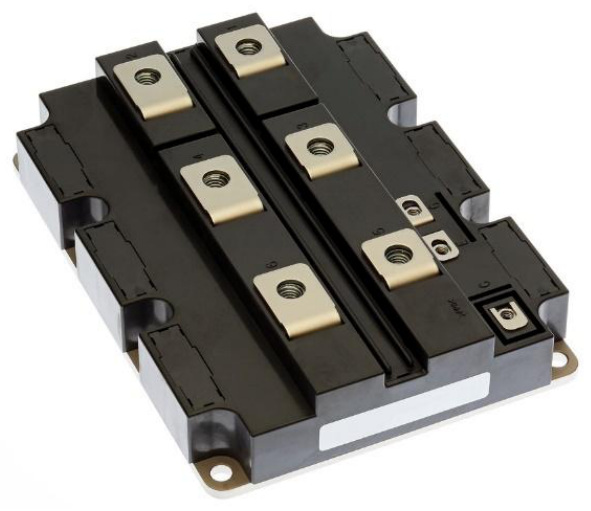

CM1200HC-90XB Mitsubishi IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

CM1200HC-90XB Description

CM1200HC-90XB is a 4,500 V / 1,200 A high-voltage single igbt module in the HVIGBT HC/HG family from Mitsubishi Electric. Manufacturer catalog lists this model as active. Verify electrical ratings, package, terminals, isolation and exact ordering suffix against the manufacturer datasheet before ordering.

USComponent sources industrial power semiconductor modules including hard-to-find parts. Request a quote for CM1200HC-90XB price and availability.

Summary of Features

CM1200HC-90XB: 4,500 V / 1,200 A high-voltage single igbt module from Mitsubishi Electric, HVIGBT HC/HG.

  • VCES: 4,500 V
  • Catalog current: 1,200 A
  • Manufacturer status: Active
  • Verify exact suffix and datasheet before purchase

Target Applications

Mitsubishi CM1200HC-90XB finds applications in various industries and systems where high power switching is required.

Key Specifications

CM1200HC-90XB is listed in the official Mitsubishi Electric power module catalog.

ParameterValue
ManufacturerMitsubishi Electric
Part numberCM1200HC-90XB
SeriesHVIGBT HC/HG
Device typeHigh-voltage single IGBT module
Rated VCES4,500 V
Catalog current rating1,200 A
Manufacturer catalog statusActive
Official sourceManufacturer product lineup

Specifications are from the manufacturer lineup, not a verified complete product-specific datasheet. Confirm pinout, mechanical fit, gate-drive requirements and current ordering status.

Technical document (PDF)  |  Request a quote for CM1200HC-90XB (reply within 24 hours)
