CM800HB-66H Mitsubishi - IGBT Module

CM800HB-66H Description

The CM800HB-66H from Mitsubishi Electric is an IGBT module with a 3300 V / 800 A rating. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM800HB-66H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi CM800HB-66H is used for Inverters, Converters, DC choppers, Induction heating and DC to DC converters.

Key Specifications

CM800HB-66H is a 3300 V / 800 A HVIGBT module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	HVIGBT module (high voltage IGBT)
Configuration	Single (1-element in a pack)
Collector-emitter voltage (VCES)	3300 V
Collector current (IC)	800 A (DC, Tc = 100 °C)
Peak collector current (ICM)	1600 A (pulse)
Collector-emitter saturation voltage (VCE(sat))	3.80 V typ / 4.94 V max (IC = 800 A, VGE = 15 V, Tj = 25 °C)
Max collector dissipation (PC)	10400 W (Tc = 25 °C, IGBT part)
Isolation voltage (Viso)	6000 V (rms, AC 60 Hz, 1 min)
Junction temperature (Tj)	-40 to +150 °C

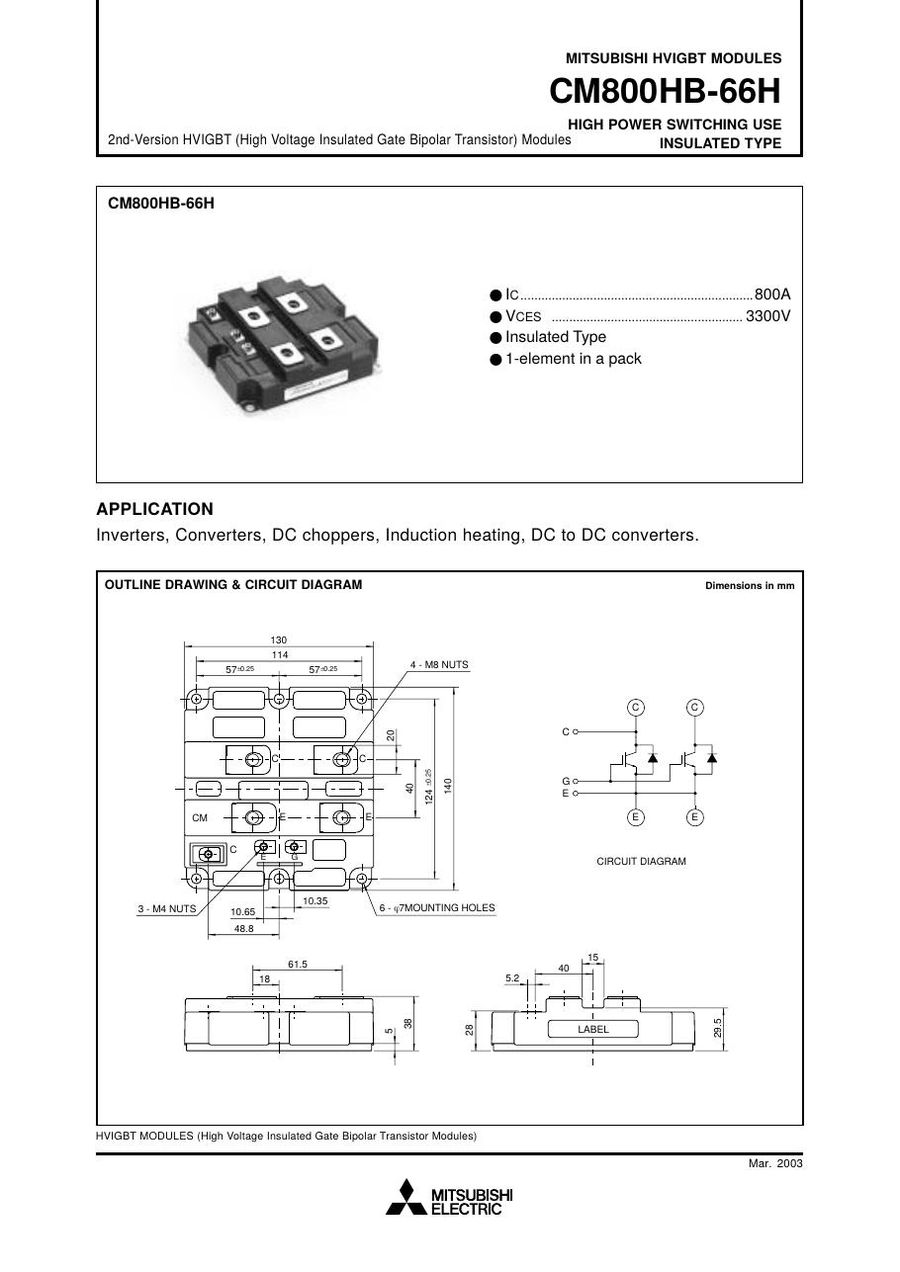

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM800HB-66H (reply within 24 hours)
