CM800HA-66H Mitsubishi - IGBT Power Transistor Module

CM800HA-66H Description

The Mitsubishi Electric CM800HA-66H is an IGBT module, rated for 3300 V and 800 A. It is built with a single switch with its freewheeling diode (1-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Request a quote for the CM800HA-66H and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi CM800HA-66H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM800HA-66H is a 3,300 V, 800 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	3,300 V
Collector current (IC)	800 A

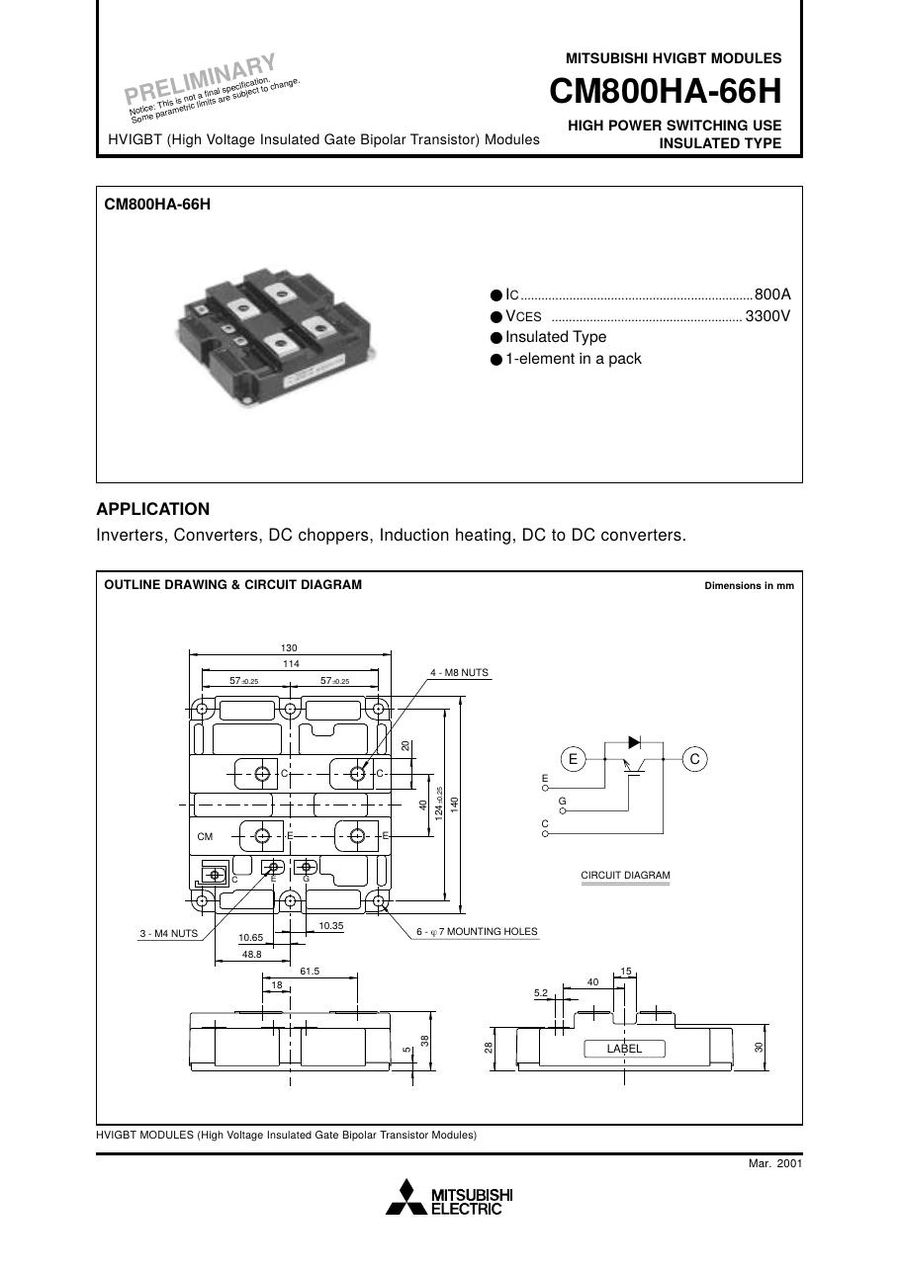

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM800HA-66H (reply within 24 hours)
