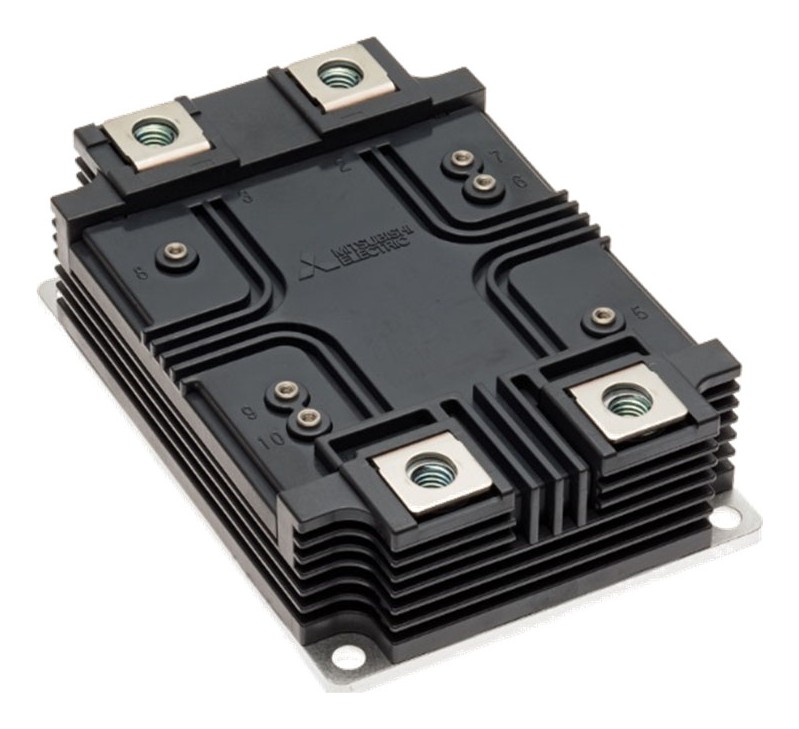

CM450DE-66X Mitsubishi - IGBT Module

CM450DE-66X Description

CM450DE-66X is a 3300 V, 450 A Mitsubishi Electric dual HVIGBT module (X-Series HVIGBT), used for traction drives, high-reliability converters and DC choppers.

USComponent supplies CM450DE-66X and other Mitsubishi Electric power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM450DE-66X is used for Traction drives, high-reliability converters and DC choppers.

Key Specifications

CM450DE-66X is a 3,300 V, 450 A Mitsubishi Electric HVIGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	HVIGBT module
Configuration	Dual (2 elements)
Collector-emitter voltage (VCES)	3,300 V
Collector current (IC nom)	450 A
Technology	X-Series HVIGBT
Package	HV dual package
