CM450DX-24SMitsubishi - IGBT Module

CM450DX-24S Description

The Mitsubishi Electric CM450DX-24S is an IGBT module, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM450DX-24S.

Summary of Features

Target Applications

Mitsubishi CM450DX-24S is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM450DX-24S is a 1,200 V, 450 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	450 A
Datasheet	Available on this page (PDF)

Download CM450DX-24S Datasheet

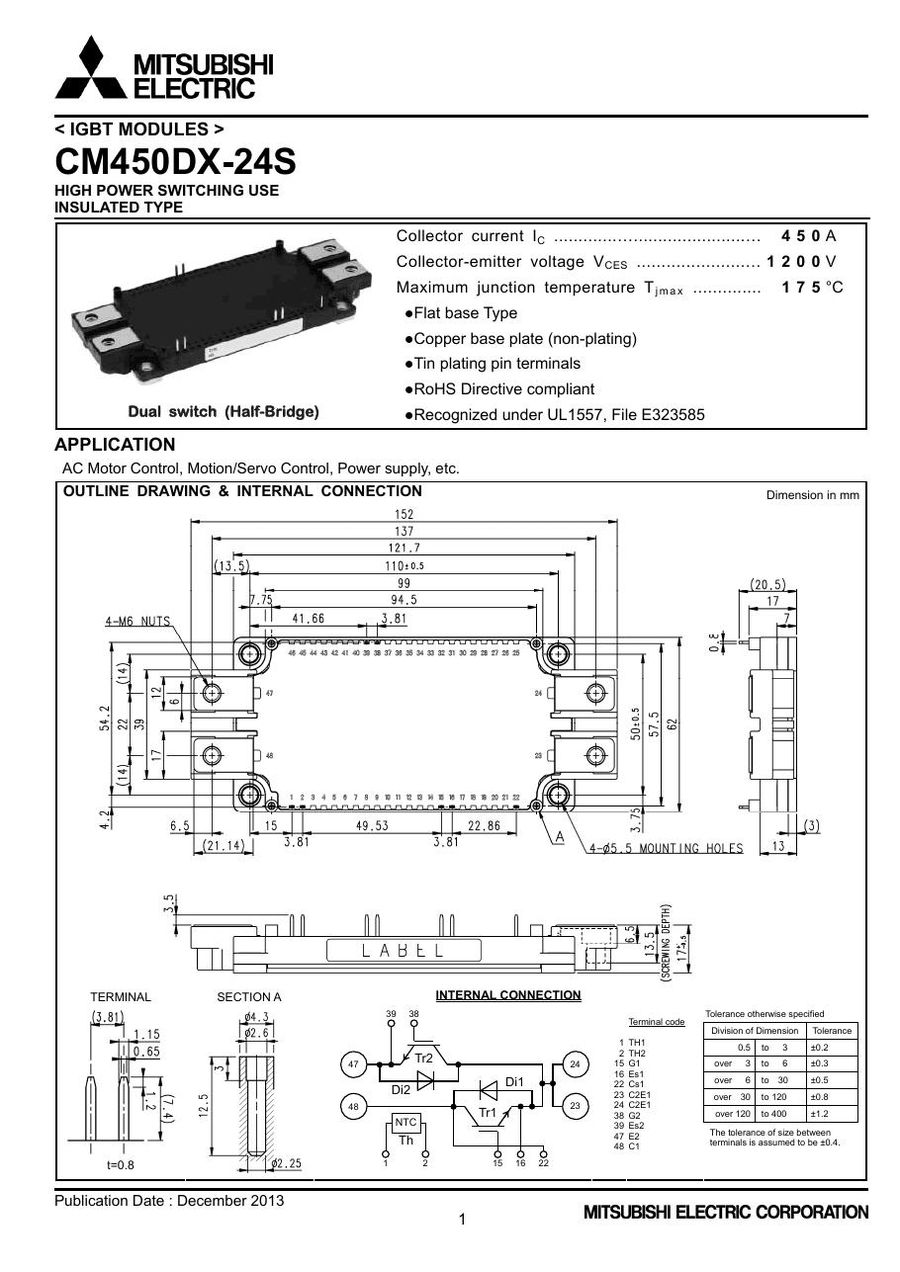

CM450DX-24S PDF Datasheet
