CM450DX-34T Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 1700V, 450A

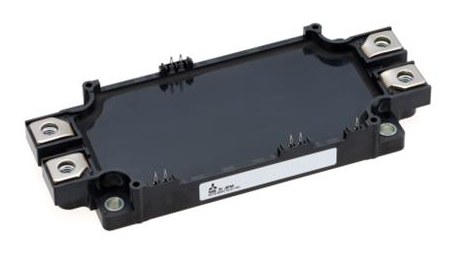

CM450DX-34T Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM450DX-34T Description

CM450DX-34T is a 1700 V / 450 A dual (half-bridge) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies CM450DX-34T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Flat base type
  • Copper base plate (Nickel-plating)
  • RoHS Directive compliant
  • Tin-plating pin terminals
  • Tin-plating pressfit terminals
  • UL Recognized under UL1557, File No. E323585

Target Applications

Mitsubishi CM450DX-34T is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

CM450DX-34T is a 1700 V / 450 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIGBT module
SeriesT series
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1700 V
Collector current (IC)450 A
PackageNX Type
Package size62 x 152 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Note: the Mitsubishi datasheet covers CM450DX-34T / CM450DXP-34T.

Technical document (PDF)  |  Request a quote for CM450DX-34T (reply within 24 hours)
